Installation Procedure
WARNING: This page is about a different variant/trim than selected.

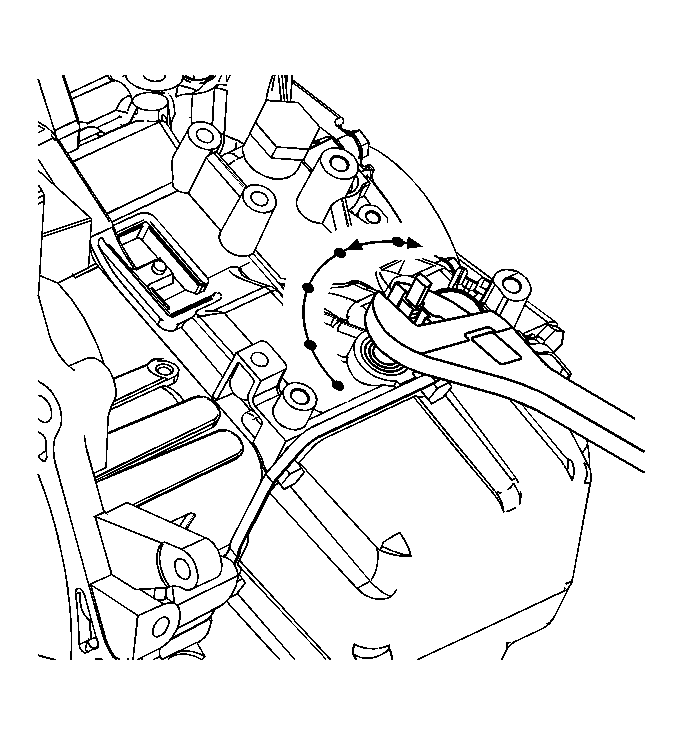

- Using an adjustable wrench on the manual shaft detent lever (710), turn the shaft clockwise until it stops.
- Turn the shaft counterclockwise one position to the neutral location. To verify turning the shaft in the correct direction, on the manual shaft detent lever (710) the reverse position is larger and more resistance can be felt.

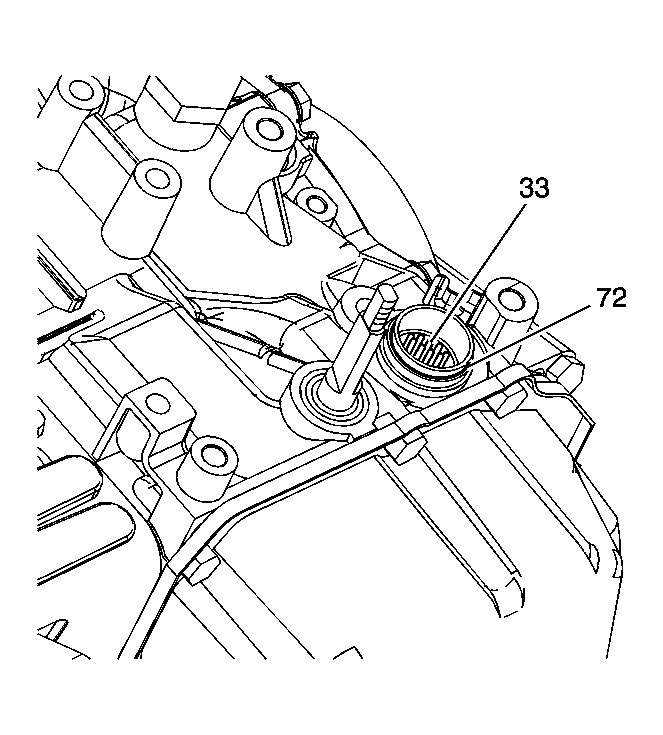

- Inspect the condition of the connector pins on the wiring harness assembly (33) for foreign material, bent pins, or broken pins.
- Ensure the TCM seal (72) is installed.
- Turn the slot in the TCM to align the 2 marks. Do not turn more than 60 degrees.

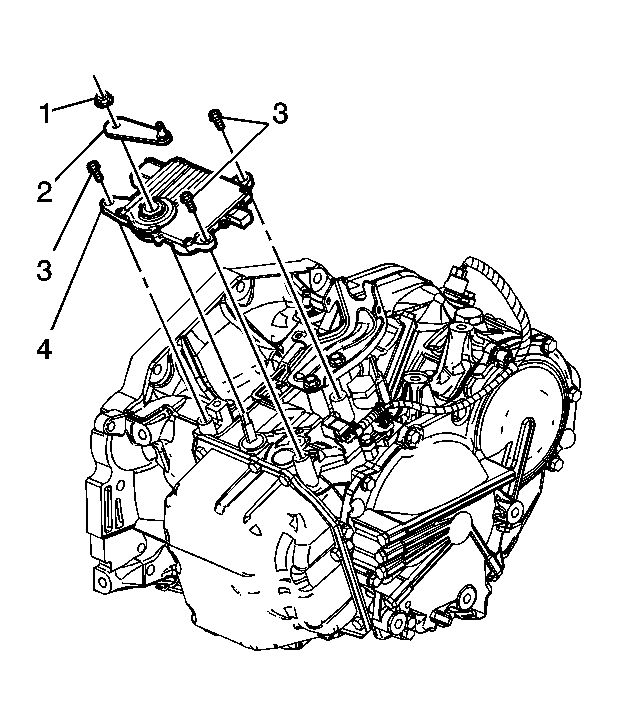

- Install the TCM (4) over the manual shaft.
- Install the bolts (3).
Tighten: Tighten the bolts to 25 N.m (18 lb ft).
- Connect the electrical connectors (3, 5) to the TCM.
- Install the manual shaft detent lever. Refer to Automatic Transmission Range Selector Lever Replacement .
- Install the battery tray. Refer to Battery Tray Replacement .
- Reprogram the TCM with the correct calibration. Refer to Control Module References .
- Perform the transmission adaptive learn procedure. Refer to Transmission Adaptive Learn and Transmission Neutral Learn .
NOTE:
Refer to Fastener Notice
.
IMPORTANT:
DTC P0602 is set with all new service transaxle control modules. When the transaxle control module is reprogrammed with the correct software and calibrations, DTC P0602 will be erased.
