Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery tray. Refer to Battery Tray Replacement .
    2. Fig 1: Identifying Shift Control Cable
    GM1858349Courtesy of GENERAL MOTORS CORP.
  2. Using the J 36346  , disconnect the shift control cable (1) from the transaxle range switch lever (4). See Special Tools .
  3. Depress the shift control cable retainer clip tabs (2) and remove the shift control cable from the shift control cable bracket (3).

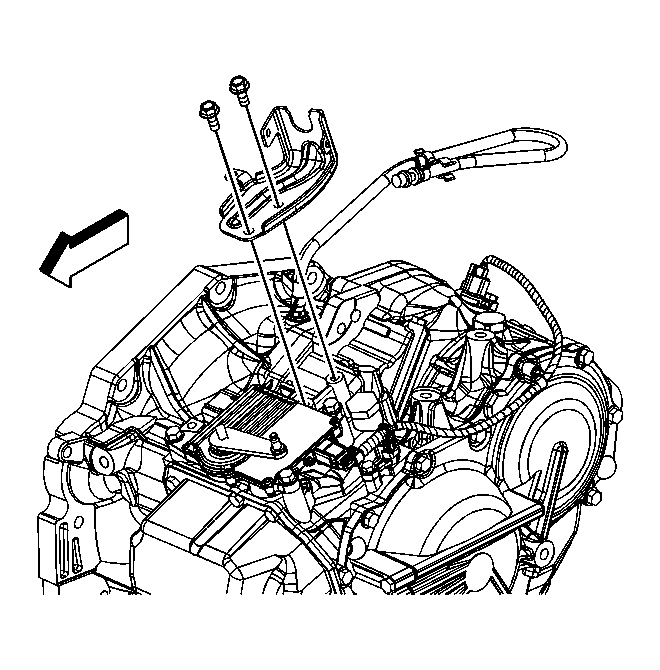

    4. Fig 2: Identifying Transaxle Shift Control Bracket
    GM1824433Courtesy of GENERAL MOTORS CORP.
  4. Remove the shift control cable bracket bolts.
  5. Remove the shift control cable bracket.
