Installation Procedure

WARNING: This page is about a different variant/trim than selected.

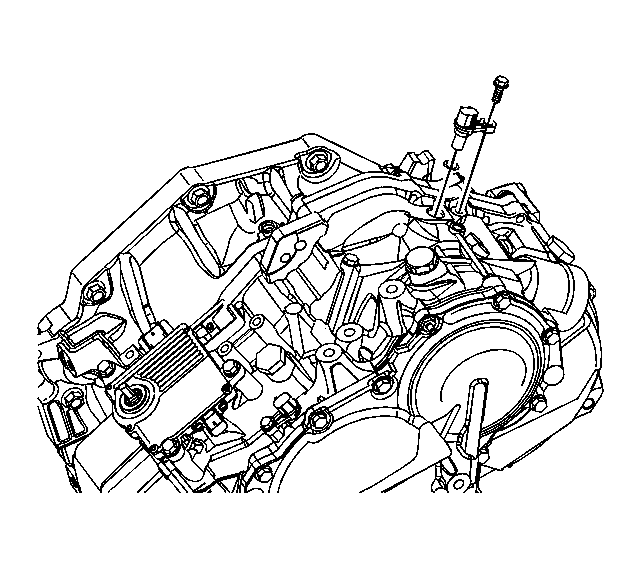

    Fig 1: Identifying Output Shaft Speed Sensor With Bolt
    GM1827302Courtesy of GENERAL MOTORS CORP.
  1. Apply GM T-IV automatic transaxle fluid GM P/N 88900925 to the new output speed sensor O-ring.
  2. Install the new output speed sensor O-ring onto the output speed sensor (2).
  3. Install the output speed sensor into the transmission case assembly.
    4. NOTE: Refer to Fastener Notice .
  4. Install the output speed sensor bolt.

    Tighten:  Tighten the bolt to 6 N.m (53 lb in).

    5. Fig 2: Identifying Electrical Connector & Output Shaft Speed Sensor
    GM1827300Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connector (2) to the output shaft speed sensor.
  6. Install the battery tray. Refer to Battery Tray Replacement .
