Removal Procedure

WARNING: This page is about a different variant/trim than selected.

CAUTION: Ensure that the vehicle is properly supported and squarely positioned. To help avoid personal injury when a vehicle is on a hoist, provide additional support for the vehicle on the opposite end from which the components are being removed.

Position the vehicle on a hoist and raise the hood.
Place a drain pan or suitable container under the vehicle.

Fig 1: View Of Transmission Cooler Lines At Radiator

Courtesy of GENERAL MOTORS CORP.

Disconnect the upper transaxle oil cooler line from the radiator.
Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
Disconnect the lower transaxle oil cooler line.

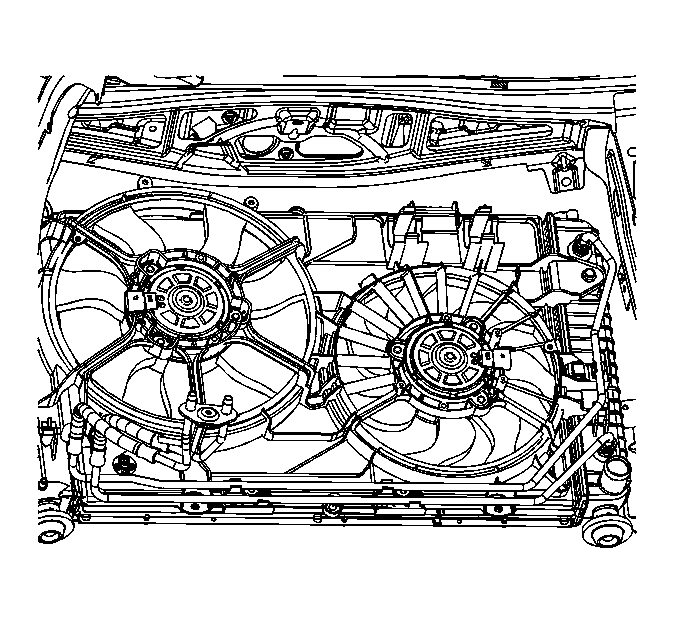

Fig 2: View Of Transaxle Oil Cooler Lines At Fan Shroud

Courtesy of GENERAL MOTORS CORP.

Disengage the transaxle cooler lines from the fan shroud.

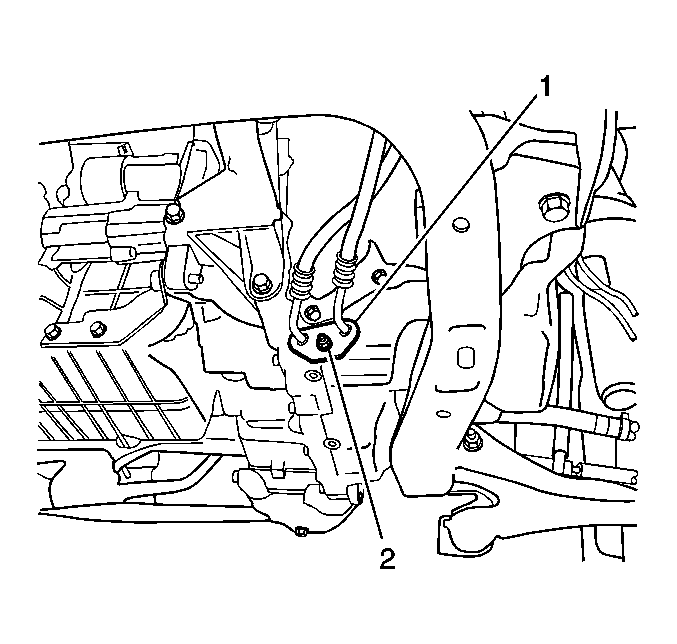

Fig 3: View Of Transaxle Cooler Lines & Nut

Courtesy of GENERAL MOTORS CORP.

Remove the transaxle cooler line assembly nut (2) from the transaxle.
Remove the transaxle cooler lines (1) from the vehicle.
Replace the transaxle oil cooler pipe seals. Refer to the Fluid Cooler Pipe Seal Replacement .
