Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery tray. Refer to Battery Tray Replacement .

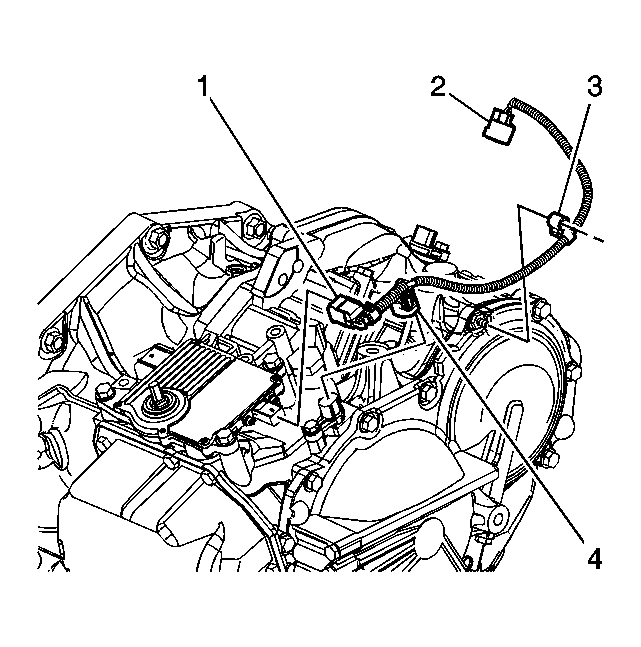

    2. Fig 1: Identifying Electrical Connector & Input Speed Sensor
    GM1827300Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector (4) from the input speed sensor.

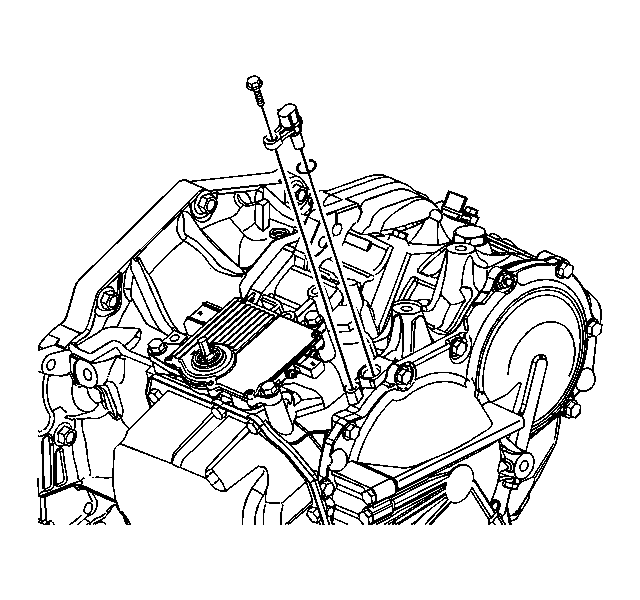

    3. Fig 2: Identifying Input Speed Sensor With Bolt
    GM1827301Courtesy of GENERAL MOTORS CORP.
  3. Remove the input speed sensor bolt.
  4. Remove the input speed sensor.
  5. Remove the input speed sensor O-ring. Discard the O-ring.
