Automatic Transmission Control Indicator Replacement
WARNING: This page is about a different variant/trim than selected.

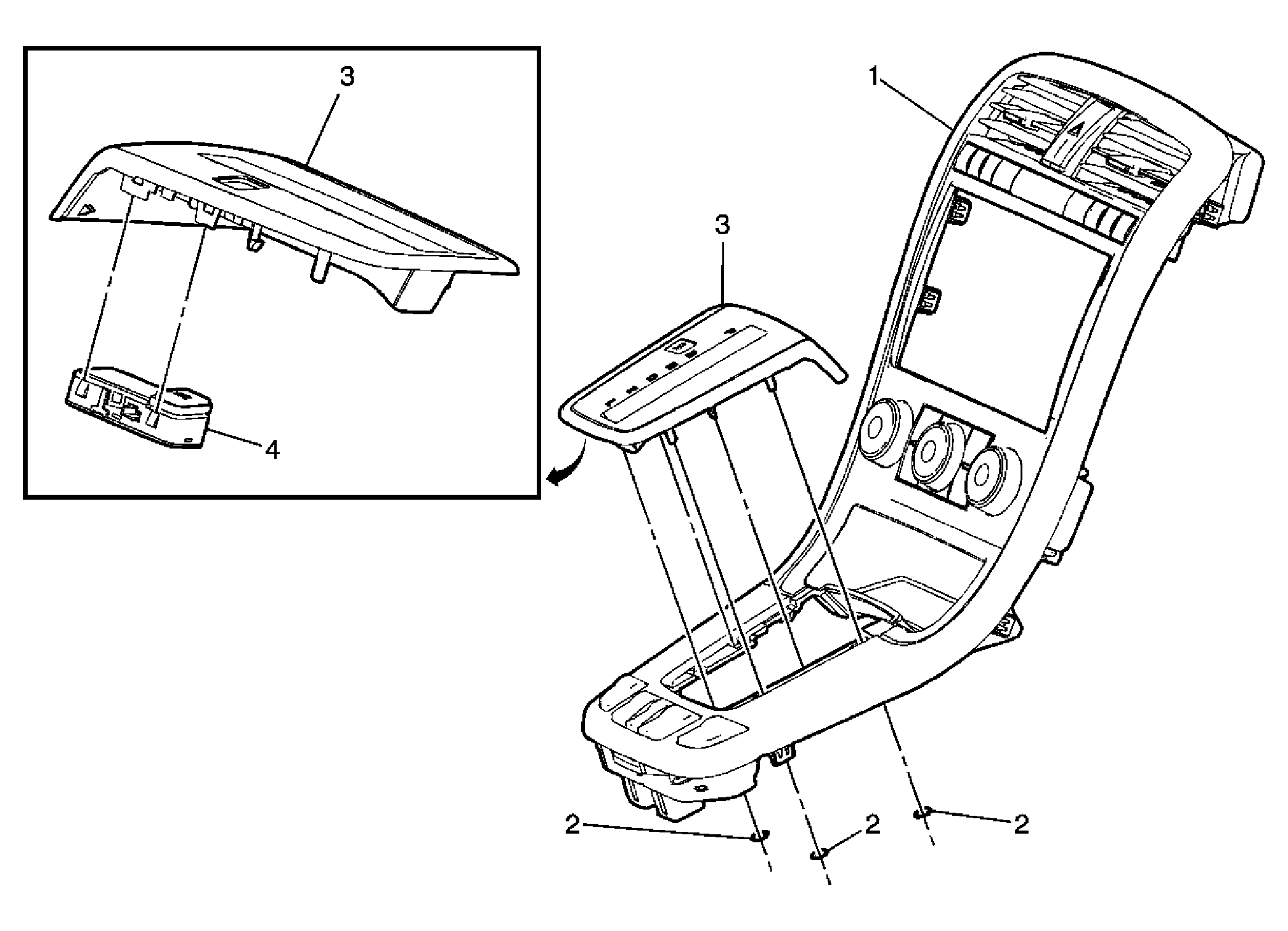

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the shift control lever knob. Refer to Transmission Control Lever Knob Replacement . |
|
| 1 | Center Trim Bezel Refer to Instrument Panel Accessory Bezel Replacement . |
| 2 | Shift Indicator Trim Plate Retainers (Qty: 3) |
| 3 | Shift Indicator Trim Plate Tip: Release the retaining tabs to remove the shift indicator from the center trim bezel. |
| 4 | Traction Control Switch Tip: Release 4 retaining tabs to remove the traction control switch from the shift indicator. |
