Wiring Harness Installation
WARNING: This page is about a different variant/trim than selected.

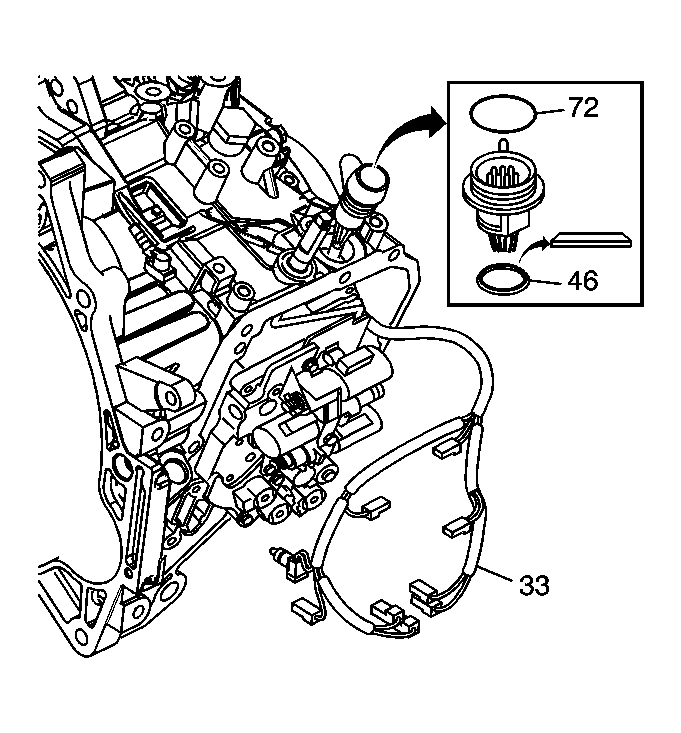

- Install a NEW autmatic transmission wiring connector seal (46) in the bore for the connector. The taper side of the seal goes up.
- Install a NEW TCM seal (72) on the connector.
- Install the transmission wiring harness assembly (33) into the transmission case assembly through the wiring harness bore.
- Align the tab of the connector in the transmission case.
- Install the wiring harness connector retainer (69).
- Apply automatic transmission fluid to the new transmission fluid temperature sensor O-ring seal (32).
- Install the new transmission fluid temperature sensor O-ring seal (32) into the groove of the transmission fluid temperature sensor (36).
- Install the transmission fluid temperature sensor (36) into the front control valve body fluid temperature sensor bore.
- Install the transmission fluid temperature sensor clip (49).
- Install the 1 - M6 x 1.0 x 55 mm fluid temperature sensor bolt (31).
Tighten: Tighten the fluid temperature sensor bolt to 10 N.m (89 lb in).
- Connect the 8 solenoid wire connectors as follows:
- 1 - blue
- 2 - black
- 3 - green
- 4 - black
- 5 - blue
- 6 - gray
- 7 - brown
- 8 - black
- Position the wiring harness in the wiring harness clip.
