Transmission Fluid Draining

WARNING: This page is about a different variant/trim than selected.

Fig 1: View Of Transmission Drain Plug & Gasket

GM749315

Courtesy of GENERAL MOTORS CORP.

Place a suitable fluid collection pan under the transmission assembly.
Remove the drain plug.
Remove the gasket (820) from the drain plug (819).
Drain the automatic transmission fluid into the collection pan.
Remove the collection pan and properly dispose of the transmission fluid.

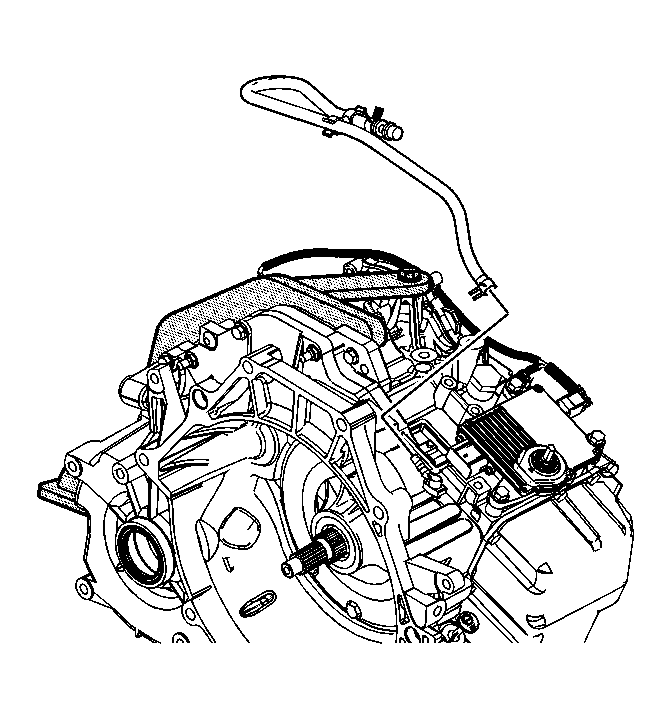

Fig 2: Identifying Vent Hose Assembly & Retainer

GM1826660

Courtesy of GENERAL MOTORS CORP.

Remove the vent hose assembly and retainer.

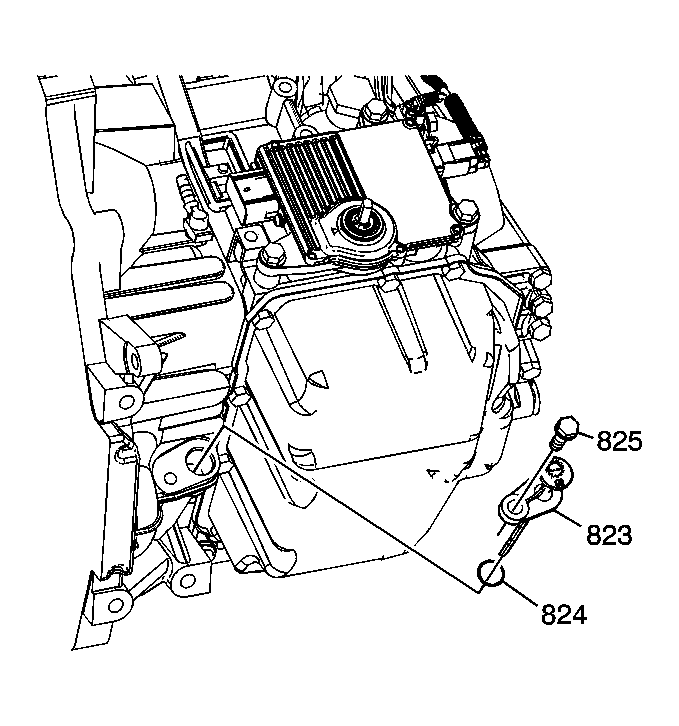

Fig 3: Identifying Transmission Level Indicator & Bolt

GM1826664

Courtesy of GENERAL MOTORS CORP.

Remove the bolt (825) for the transmission level indicator.
Remove the transmission oil level indicator (823) and the O-ring (824).
