Transmission Control Module Removal

WARNING: This page is about a different variant/trim than selected.

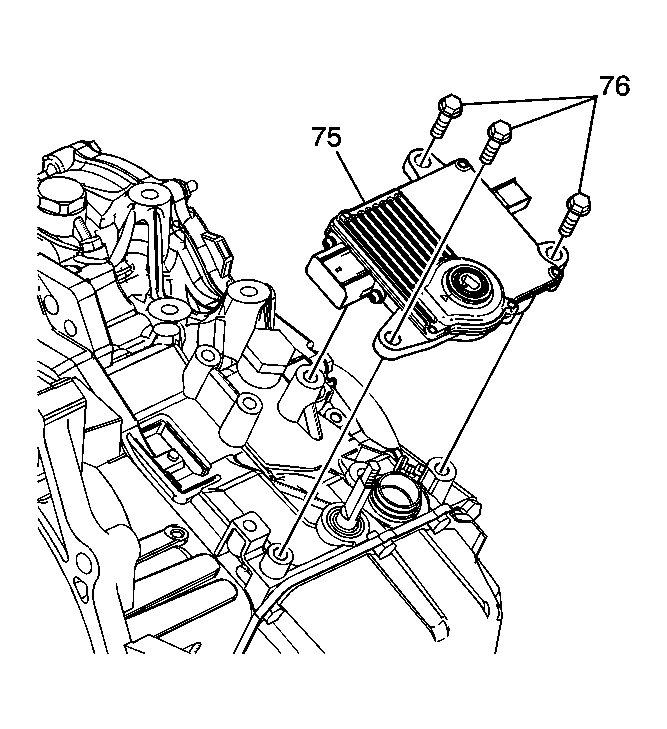

    Fig 1: View Of Transmission Control Module & Bolts
    GM1826672Courtesy of GENERAL MOTORS CORP.
  1. Remove the three TCM bolts (76).
  2. Remove the TCM (75) by sliding off of the manual shaft detent lever assembly.
