Torque Converter Housing Installation

WARNING: This page is about a different variant/trim than selected.

Fig 1: Locating Case Fluid Passage Seal

Courtesy of GENERAL MOTORS CORP.

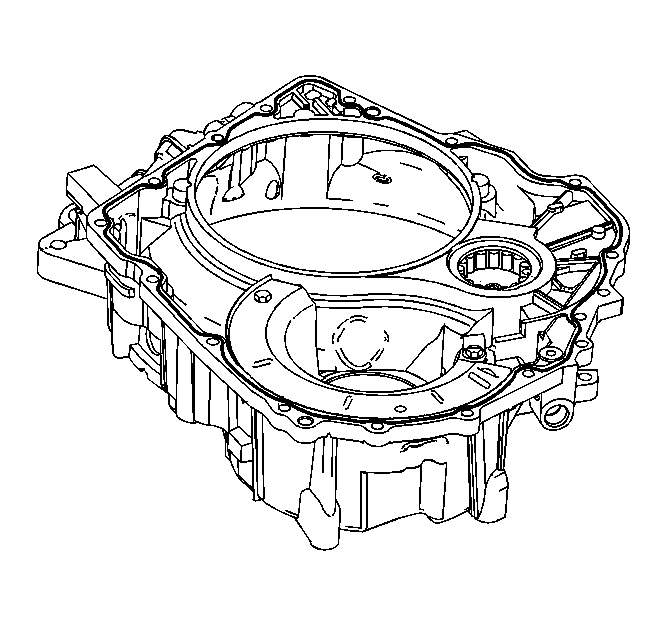

Fig 2: Applying Sealant To Torque Converter Housing Assembly

Courtesy of GENERAL MOTORS CORP.

Apply a 3 mm (1/8 in) bead of sealant GM P/N 89020326 (Canadian P/N 89021188) on the inside of the bolt holes of the scaling flange of the torque converter housing assembly.
Install the torque converter housing assembly to the transmission case assembly.

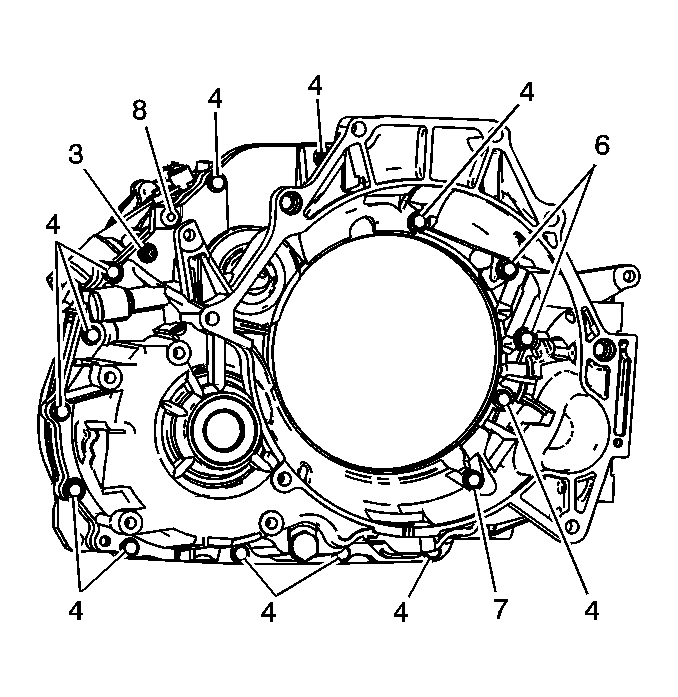

Fig 3: View Of Torque Converter Housing Bolts

Courtesy of GENERAL MOTORS CORP.

Apply threadlocker GM P/N 12345382 (Canadian P/N 10953499), to the threads of all the torque converter housing bolts.
Install the 12 - M8 x 1.25 x 30 mm bolts (4) and hand tighten.
Install the 1 - M8 x 1.25 x 30 mm bolt/studs (3) and hand tighten.
Install the 2 - M8 x 1.25 x 35 mm bolts (6) and hand tighten.
Install the 1 - M8 x 1.25 x 45 mm bolt (7) and hand tighten.
Install the 1 - M8 x 1.25 x 30 mm TORX 40 bolt (8) and hand tighten.

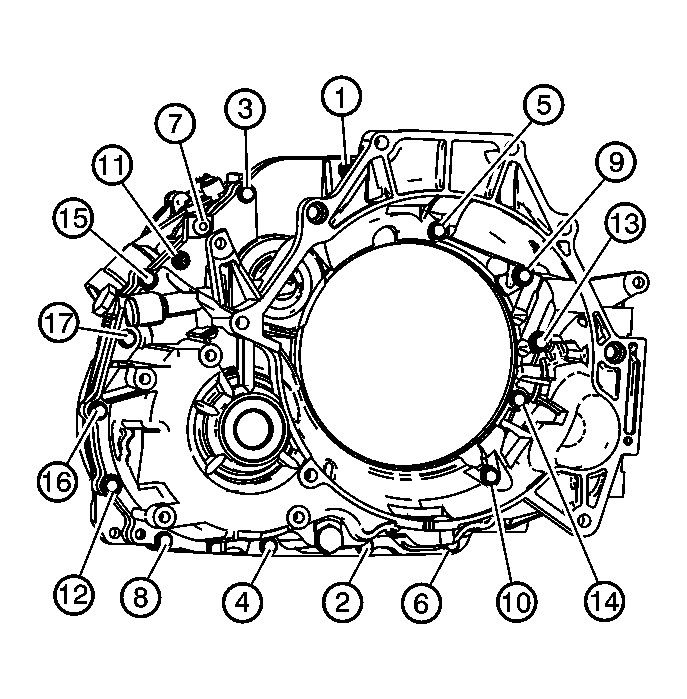

Fig 4: Identifying Torque Converter Housing Bolt Tightening Sequence

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Tighten the 17 torque converter housing bolts in sequence.
Tighten: Tighten the torque converter housing bolts to 29 N.m (21 lb ft).
