Torque Converter Assembly Installation

WARNING: This page is about a different variant/trim than selected.

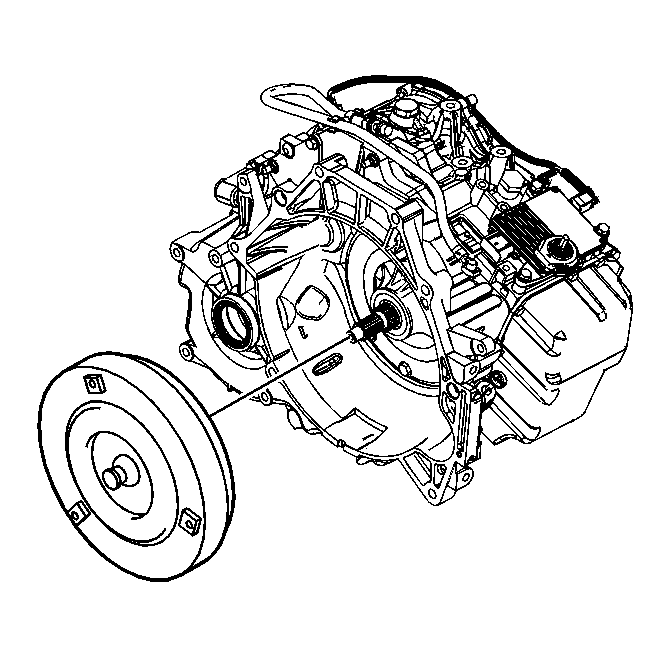

    Fig 1: View Of Torque Converter Assembly
    GM1826653Courtesy of GENERAL MOTORS CORP.
  1. Install the torque converter.

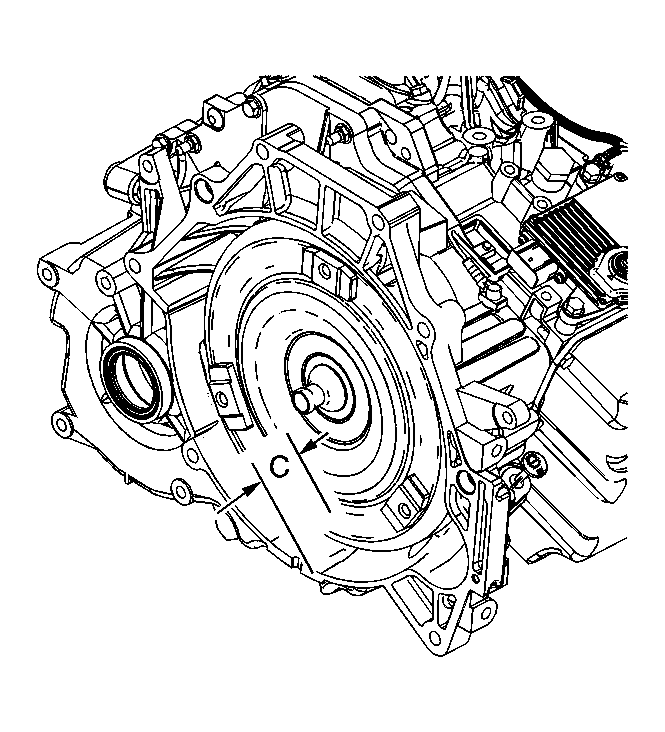

    2. Fig 2: Identifying Dimension "C"
    GM1826705Courtesy of GENERAL MOTORS CORP.
  2. Measure dimension C.
  3. If dimension C is not within specifications, rotate the torque converter to index it to the pump.

    Installation Height:  Dimension C should be 11.35 mm (0.447 in).
