Tools Required

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Second Coast Clutch Backing Plate Retaining Ring
    GM749525Courtesy of GENERAL MOTORS CORP.
  1. Using J 45164  (2), J 21420-2 (4) and J 23327-2 (1), which are part of J 23327  , compress the second clutch spring. See Special Tools .
  2. Using J 28585  (3), remove the second coast clutch backing plate retaining ring (230) from the fluid pump assembly. See Special Tools .

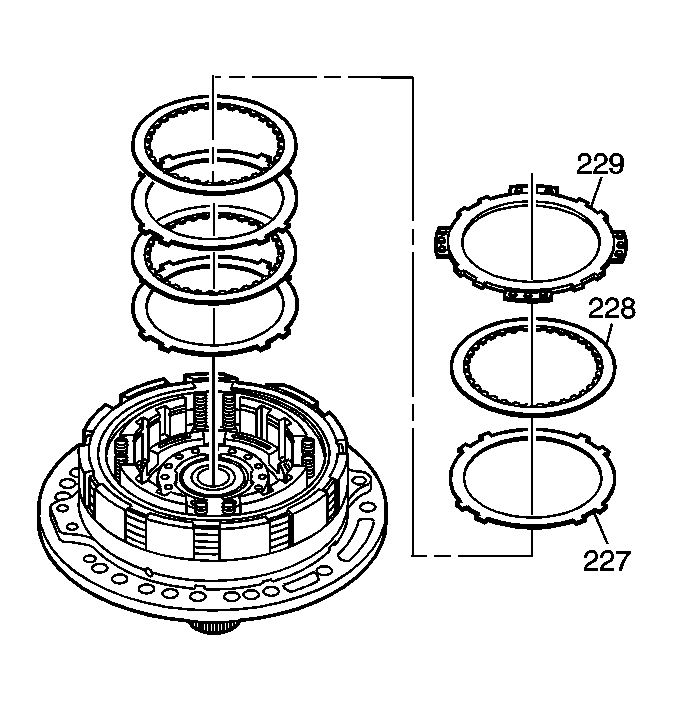

    3. Fig 2: View Of Second Coast Plates
    GM1429626Courtesy of GENERAL MOTORS CORP.
  3. Remove the clutch plates (227, 228, 229).

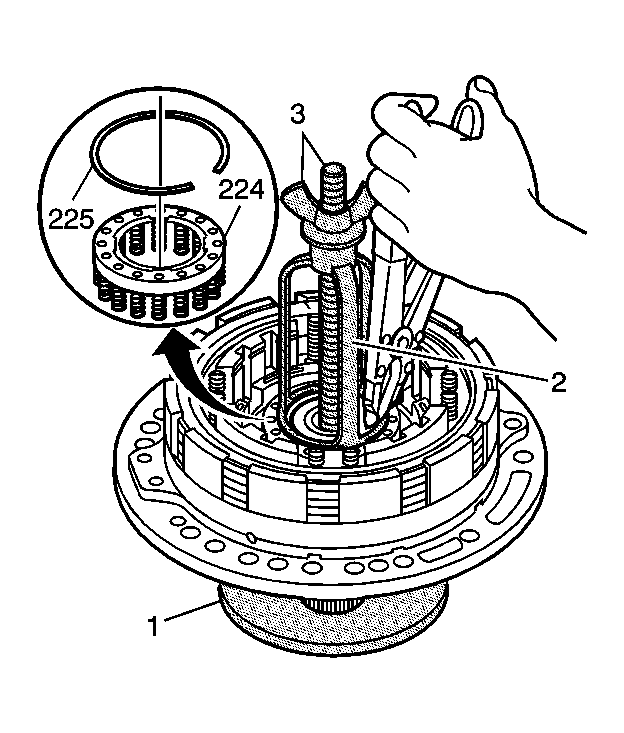

    4. Fig 3: View Of Second Coast Clutch Spring Retaining Ring
    GM1429627Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not let the tools contact the bushing surfaces.
  4. Install J 21420-2 (1) and J 23327-2 (3), which are part of J 23327  , and J 41236  (2) and compress the second coast clutch spring (224). See Special Tools .
  5. Remove the second coast clutch spring retaining ring (225) using snap ring pliers.
  6. Remove the second coast clutch spring (224) from the fluid pump assembly.
    7. Fig 4: View Of Second Coast Clutch Piston & Seals
    GM1429628Courtesy of GENERAL MOTORS CORP.
    CAUTION: Wear safety glasses when using compressed air in order to prevent eye injury.
  7. While pulling upward on the piston by hand, apply compressed air into the fluid passage in the fluid pump assembly and remove the second coast clutch piston (222).
  8. Remove the inner seal (221) and the outer seal (223) from the second coast clutch piston (222).
