    Fig 1: View Of Second Coast Clutch Piston & Seals
    GM1429629Courtesy of GENERAL MOTORS CORP.
  1. Apply automatic transmission fluid to the new second coast clutch piston seals.
  2. Install the new inner seal (221) and the outer seal (223) onto the second coast clutch piston (222).
  3. Apply automatic transmission fluid to the inner surfaces of the fluid pump stator shaft assembly.
  4. Press the second coast clutch piston (222) into the fluid pump stator shaft assembly.

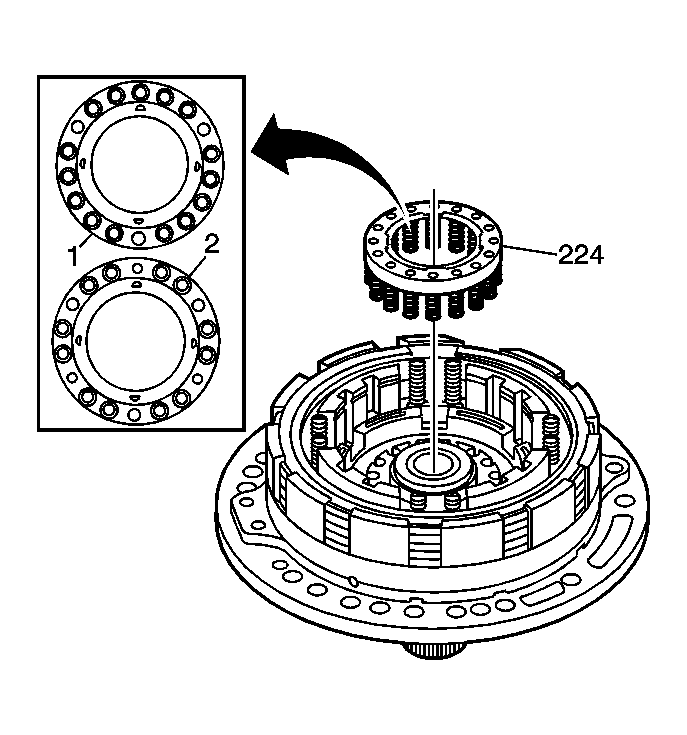

    5. Fig 2: View Of Second Coast Clutch Spring Assembly
    GM1429630Courtesy of GENERAL MOTORS CORP.
  5. Install the second coast clutch spring assembly (224) making sure to index the springs into the notches in the second coast clutch piston.
    6. Fig 3: View Of Second Coast Clutch Spring Retaining Ring
    GM1429627Courtesy of GENERAL MOTORS CORP.
  6. Place the J 21420-2 (1) and J 23327-2 (3), which are part of J 23327  , and J 41236  (2) on the second coast clutch spring (224), and compress the springs. See Special Tools .
  7. Using snap ring pliers, install the second coast clutch spring retaining ring (225) into the groove of the fluid pump stator shaft assembly.
    8. Fig 4: View Of Second Coast Plates
    GM1429626Courtesy of GENERAL MOTORS CORP.
  8. Install a steel plate (227) then a fiber plate (228). Repeat this sequence until all 6 plates have been installed.
  9. Install the second coast clutch backing plate (229).
    10. Fig 5: Identifying Second Coast Clutch Backing Plate Retaining Ring
    GM749525Courtesy of GENERAL MOTORS CORP.
  10. Using J 45164  (2), J 21420-2 (4) and J 23327-2 (1), which are part of J 23327  , compress the second clutch spring. See Special Tools .
  11. Using J 28585  (3), install the second coast clutch backing plate retaining ring (230) into the groove of the fluid pump stator shaft assembly. See Special Tools .
