Input and Output Speed Sensor Removal

WARNING: This page is about a different variant/trim than selected.

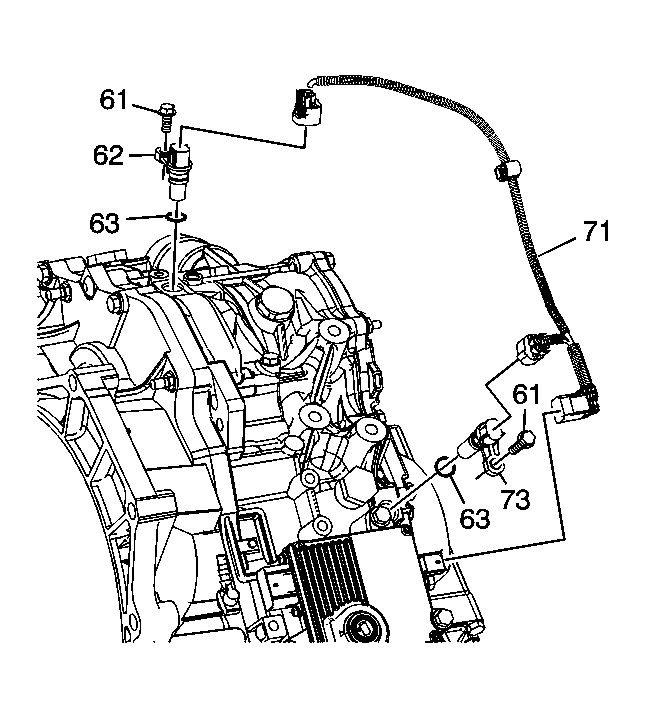

    Fig 1: Identifying Input & Output Speed Sensor
    GM1826668Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not damage the speed sensors or transaxle case.
  1. Disconnect the input and output speed sensor harness assembly (71) from the TCM.
  2. Disconnect the input and output speed sensor harness assembly (71) from the output speed sensor (62) and the input speed sensor (73).
  3. Remove the speed sensor bolts (61).
  4. Remove the output speed sensor (62) and the input speed sensor (73).
  5. Remove the speed sensors O-rings (63).
  6. Inspect the speed sensors for damage.
