Tools Required

J 28585  Snap Ring Remover. See Special Tools .

Fig 1: View Of Front Internal Gear Thrust Bearing
Courtesy of GENERAL MOTORS CORP.
1. Remove the front internal gear thrust bearing (529).
Fig 2: View Of Low & Reverse Clutch Plate Retaining Ring
Courtesy of GENERAL MOTORS CORP.
2. Remove the low and reverse clutch plate retaining ring (518) from the transmission case assembly with J 28585  . See Special Tools .

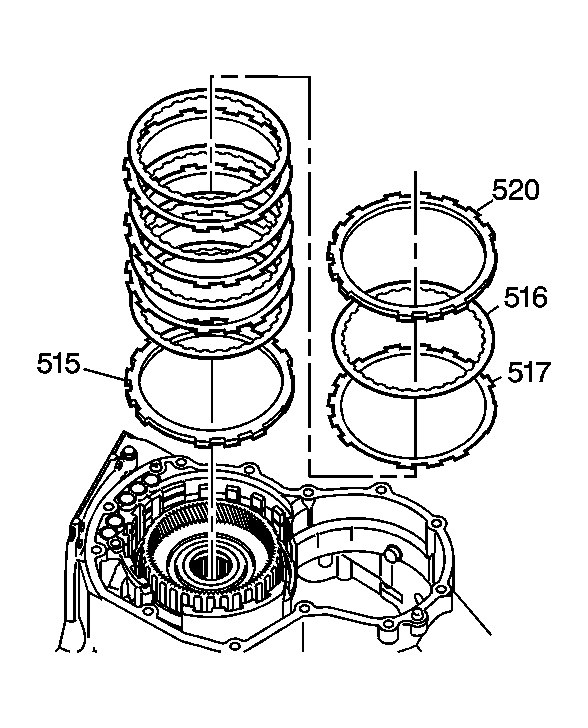

Fig 3: Identifying Low & Reverse Clutch Assembly
Courtesy of GENERAL MOTORS CORP.
3. Remove the low and reverse clutch backing plate (520).
4. Remove the 5 low and reverse clutch fiber plate assemblies (516).
5. Remove the 4 low and reverse clutch steel plates (517).
6. Remove the low and reverse clutch apply plate (515).
Fig 4: View Of Front Internal Gear Thrust Bearing Assembly & Front Internal Gear
Courtesy of GENERAL MOTORS CORP.
7. Remove the front internal gear (526). The front internal gear thrust bearing assembly (519) and the thrust washer race (530) are on the back side of the front internal gear (526).
