Liftgate Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

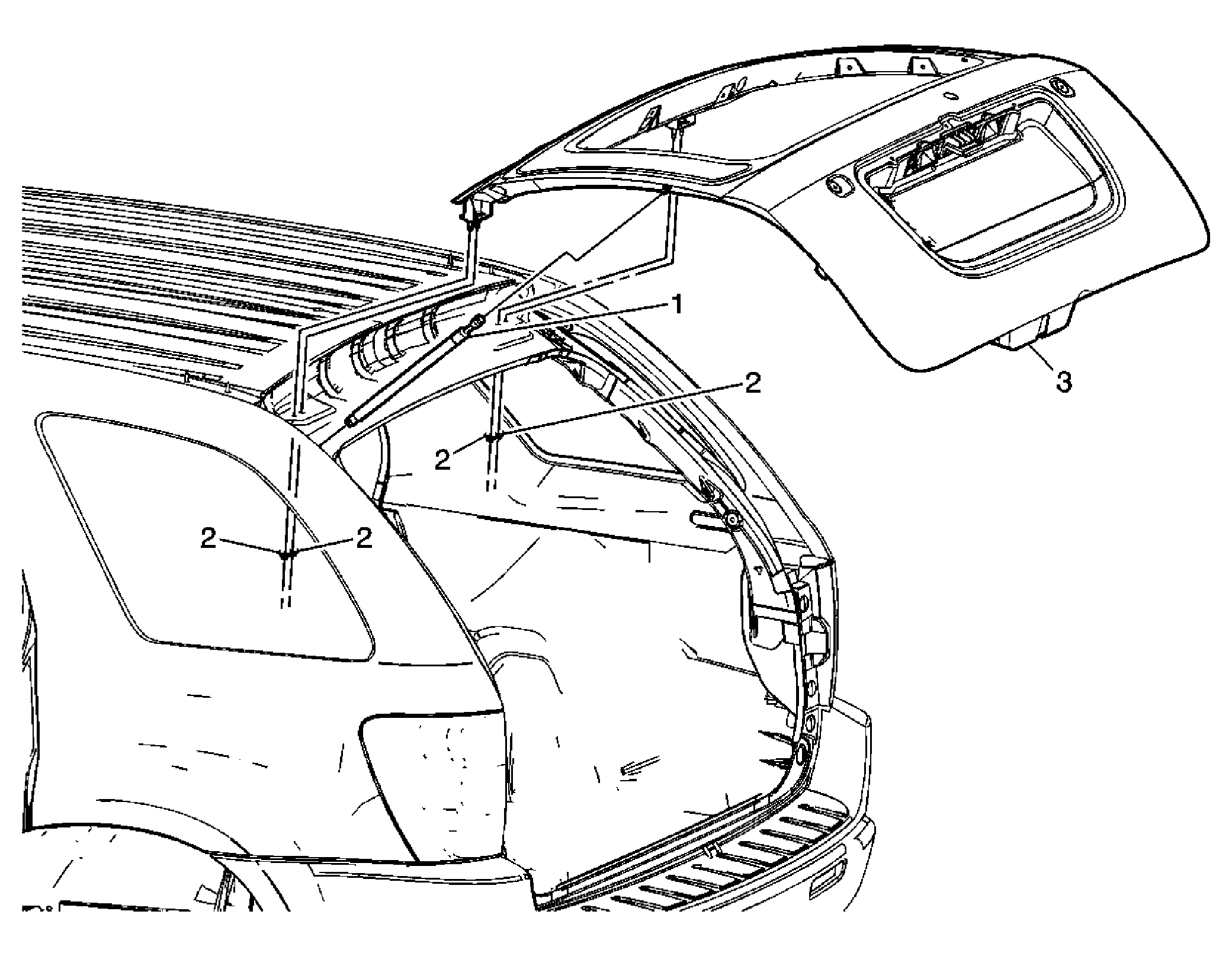

Fig 1: View Of Liftgate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the liftgate interior trim panel. Refer to Liftgate Trim Panel Replacement .
1	Liftgate Strut Rod Refer to Liftgate Strut Replacement .
2	Liftgate Hinge Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Tip: Mark the location of the liftgate hinges to the body with a grease pencil. Tighten: 25 N.m (18 lb ft)
3	Liftgate Assembly Procedure Disconnect the liftgate wiring connectors. Disconnect the rear washer hose. Pull the liftgate wiring grommet, the connectors and the rear washer hose out of the rear header. Remove the liftgate from the vehicle with an assistant, and place the outside face down on a clean, padded surface.
