Liftgate Trim Panel Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

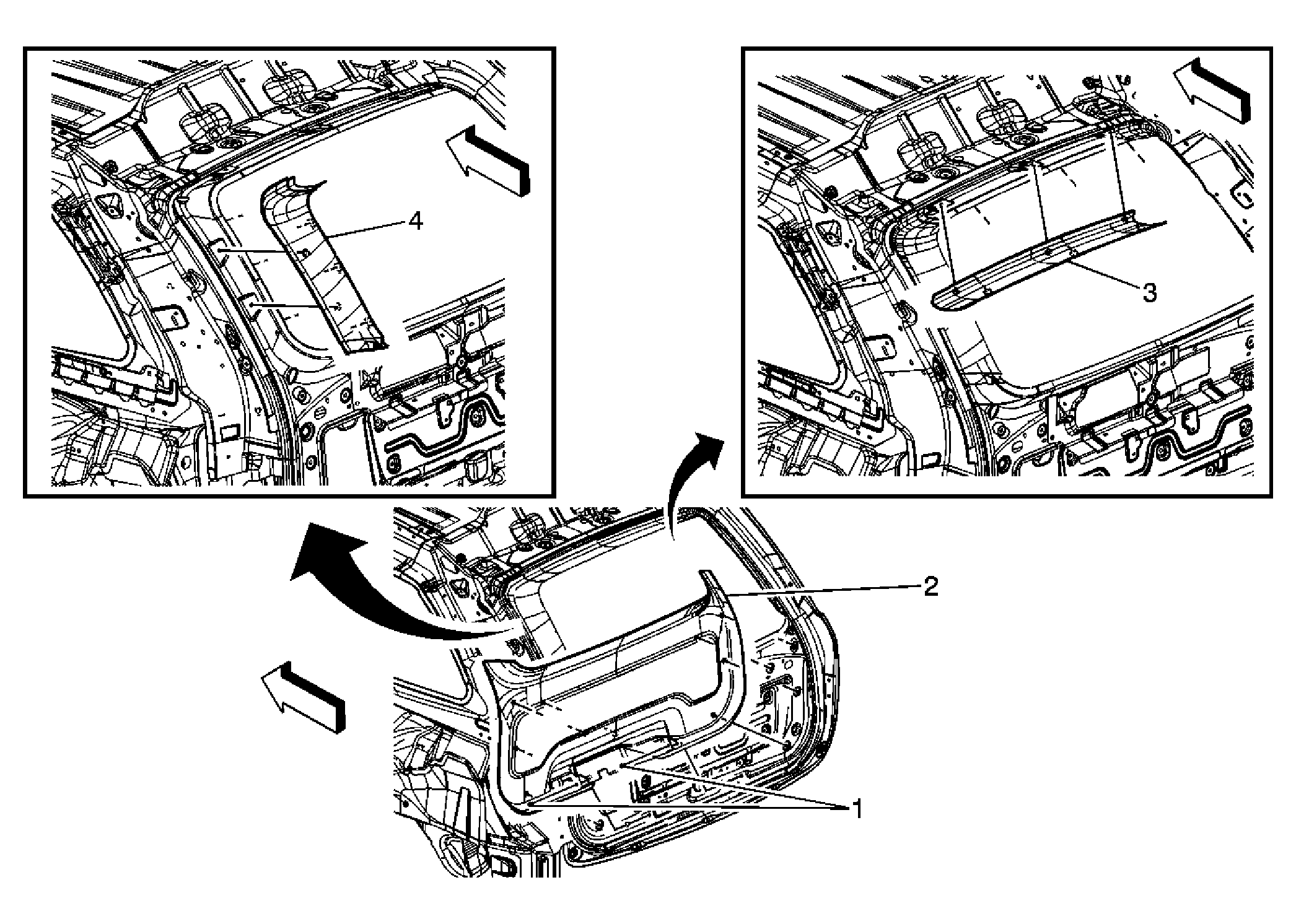

| Callout | Component Name |
|---|---|
| 1 | Liftgate Lower Trim Panel Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Liftgate Lower Trim Finish Panel Tip: Pull away from the liftgate to release the retainers. |
| 3 | Liftgate Upper Trim Finish Panel Tip: Pull away from the liftgate to release the retainers. |
| 4 | Liftgate Trim Finish Panel (Qty: 2) Tip: Pull away from the liftgate to release the retainers. |
