Removal Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate. Refer to Liftgate Replacement .
  2. Remove the headliner. Refer to Headlining Trim Panel Replacement .

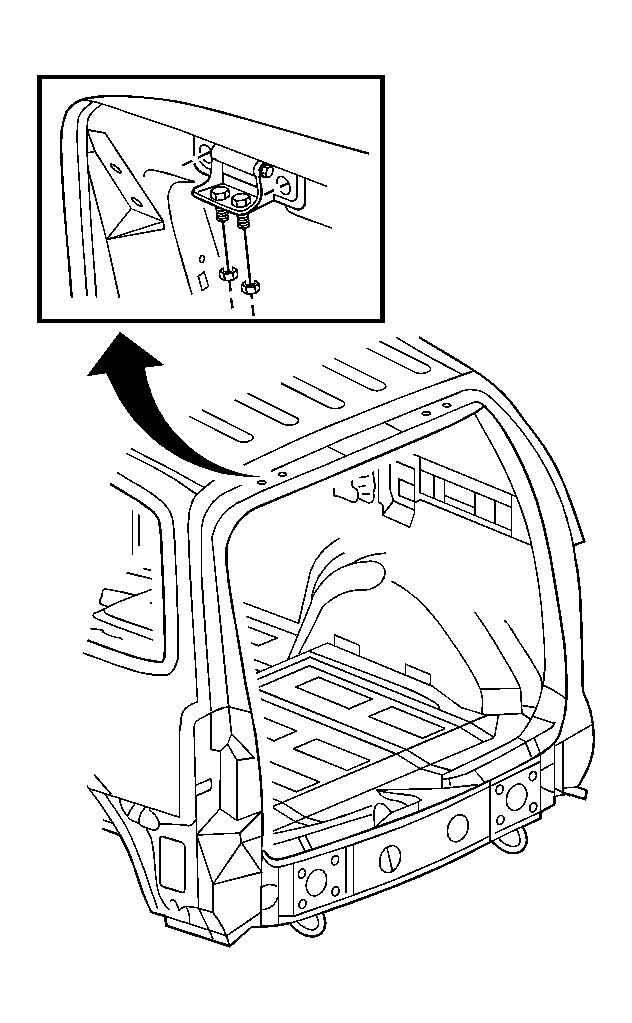

    3. Fig 1: View Of Liftgate Hinge
    GM1666880Courtesy of GENERAL MOTORS CORP.
  3. Use a grease pencil to mark the liftgate hinge position to the body.
  4. Remove the hinge retaining nuts from the vehicle roof.
  5. Remove the hinge from the vehicle.
