Fuel Tank Filler Door Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

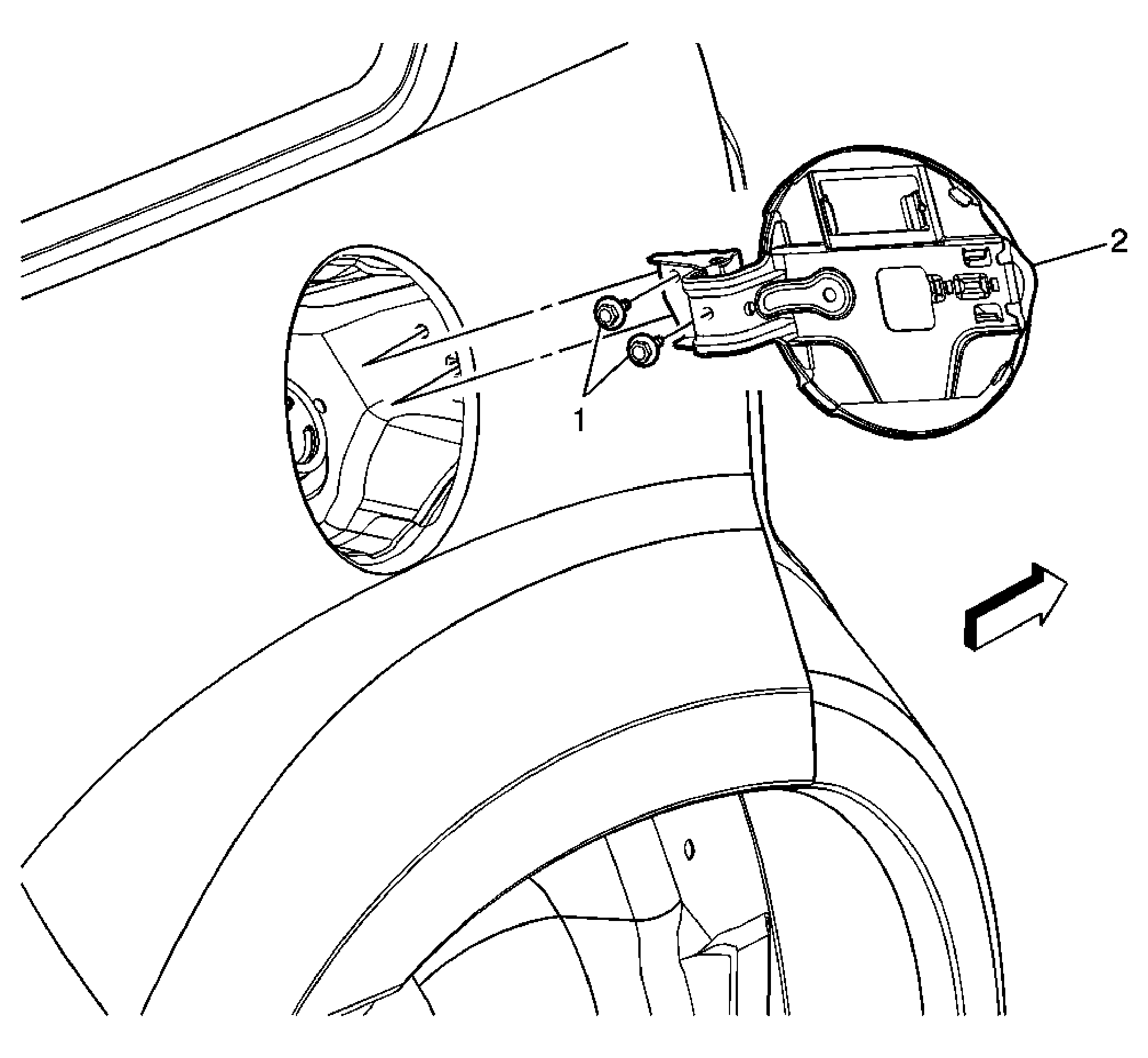

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the liftgate interior trim panel. Refer to Liftgate Trim Panel Replacement . |
|
| 1 | Fuel Filler Door Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Fuel Filler Door Procedure: Disconnect the fuel cap strap from the fuel filler door. |
