Front Side Door Check Link Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

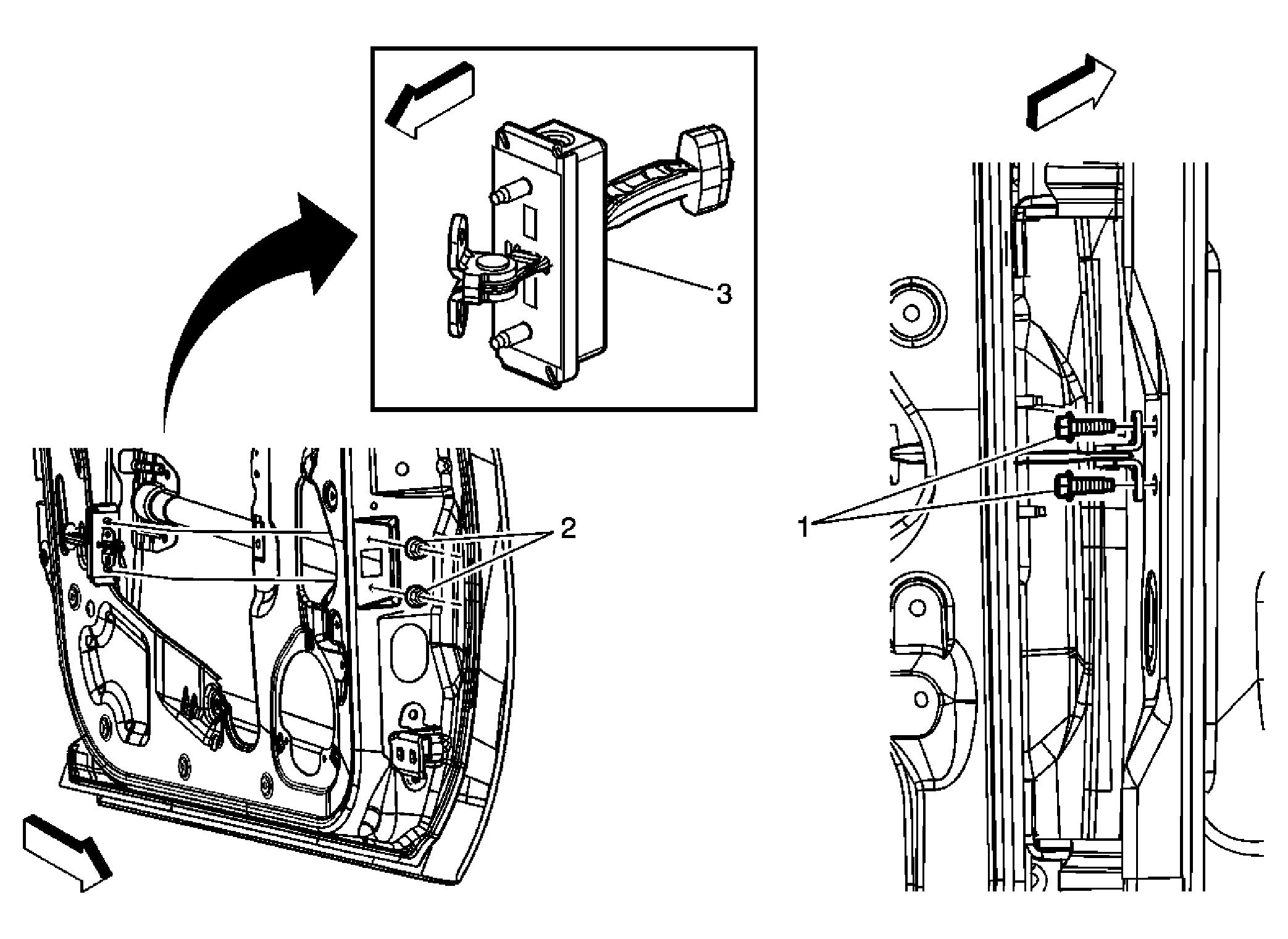

Fig 1: Identifying Front Side Door Check Link

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: In order to prevent SIR deployment, personal injury, or unnecessary SIR system repairs, do not strike the door or the door pillar in the area of the side impact sensor (SIS). Turn OFF the ignition and remove the key when performing service in the area of the SIS. Preliminary Procedures Remove front door trim panel. Refer to Front Side Door Trim Panel Replacement . Remove front door lower speaker. Refer to Radio Front Side Door Speaker Replacement .
1	Front Side Door Check Link Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb ft)
2	Front Side Door Check Link Nut (Qty: 2) Tighten: 10 N.m (89 lb ft)
3	Front Side Door Check Link Assembly
