Seat Belt Height Adjuster Replacement - Front

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

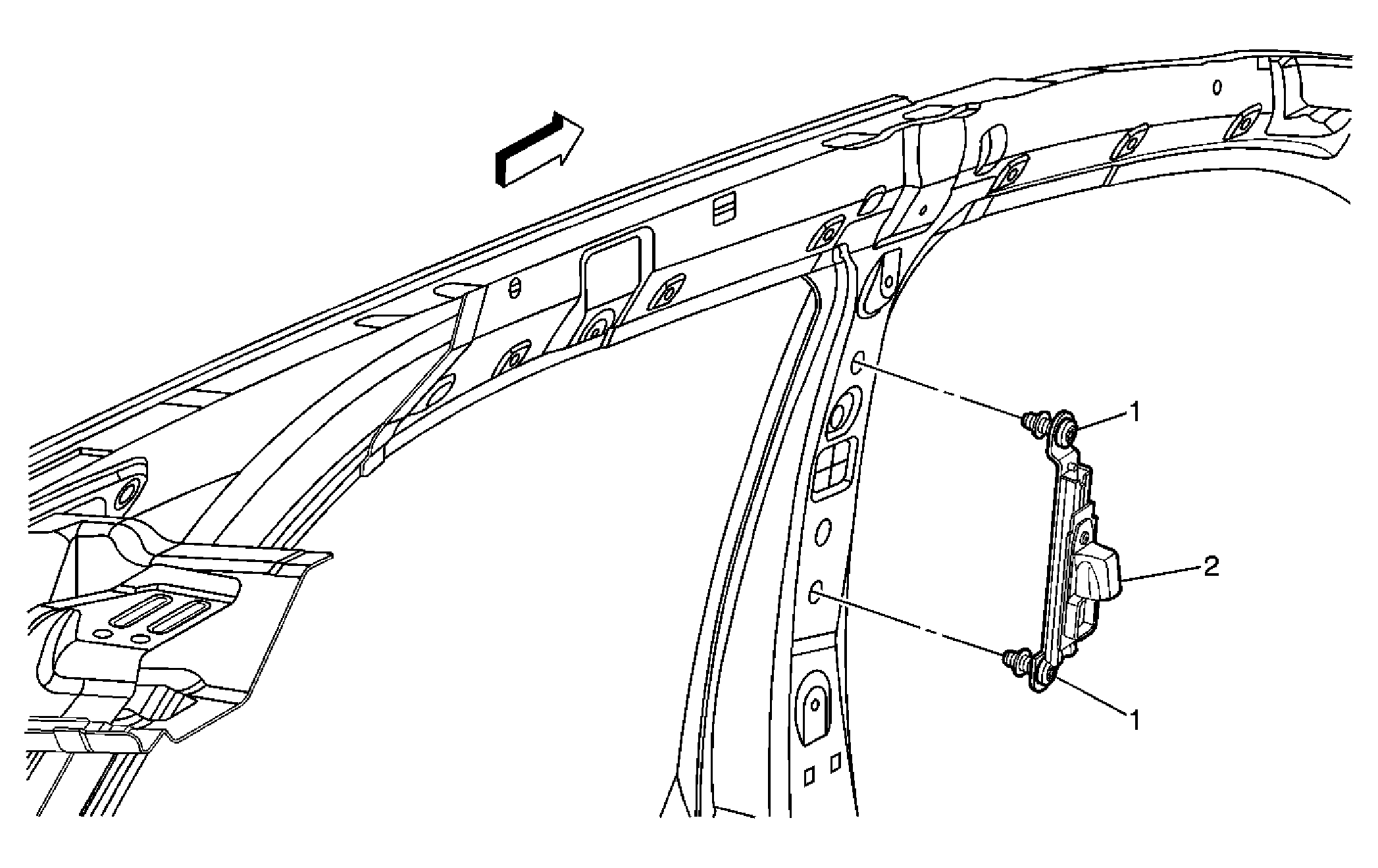

Fig 1: View Of Front Seat Belt Height Adjuster

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front seat belt adjuster cover. Remove seat belt guide loop bolt. Refer to Seat Belt Retractor Pretensioner Replacement - Front . Remove the center pillar upper garnish molding. Refer to Center Pillar Upper Garnish Molding Replacement .
1	Front Seat Belt Height Adjuster Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tip: Apply Permatex® 24200 on all restraint fasteners prior to installation. Tighten: 40 N.m (30 lb ft)
2	Front Seat Belt Height Adjuster Assembly

Callout

Component Name

Preliminary Procedures

Remove the front seat belt adjuster cover.
Remove seat belt guide loop bolt. Refer to Seat Belt Retractor Pretensioner Replacement - Front .
Remove the center pillar upper garnish molding. Refer to Center Pillar Upper Garnish Molding Replacement .

Front Seat Belt Height Adjuster Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tip: Apply Permatex® 24200 on all restraint fasteners prior to installation.

Tighten: 40 N.m (30 lb ft)

Front Seat Belt Height Adjuster Assembly
