Center Pillar Upper Garnish Molding Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

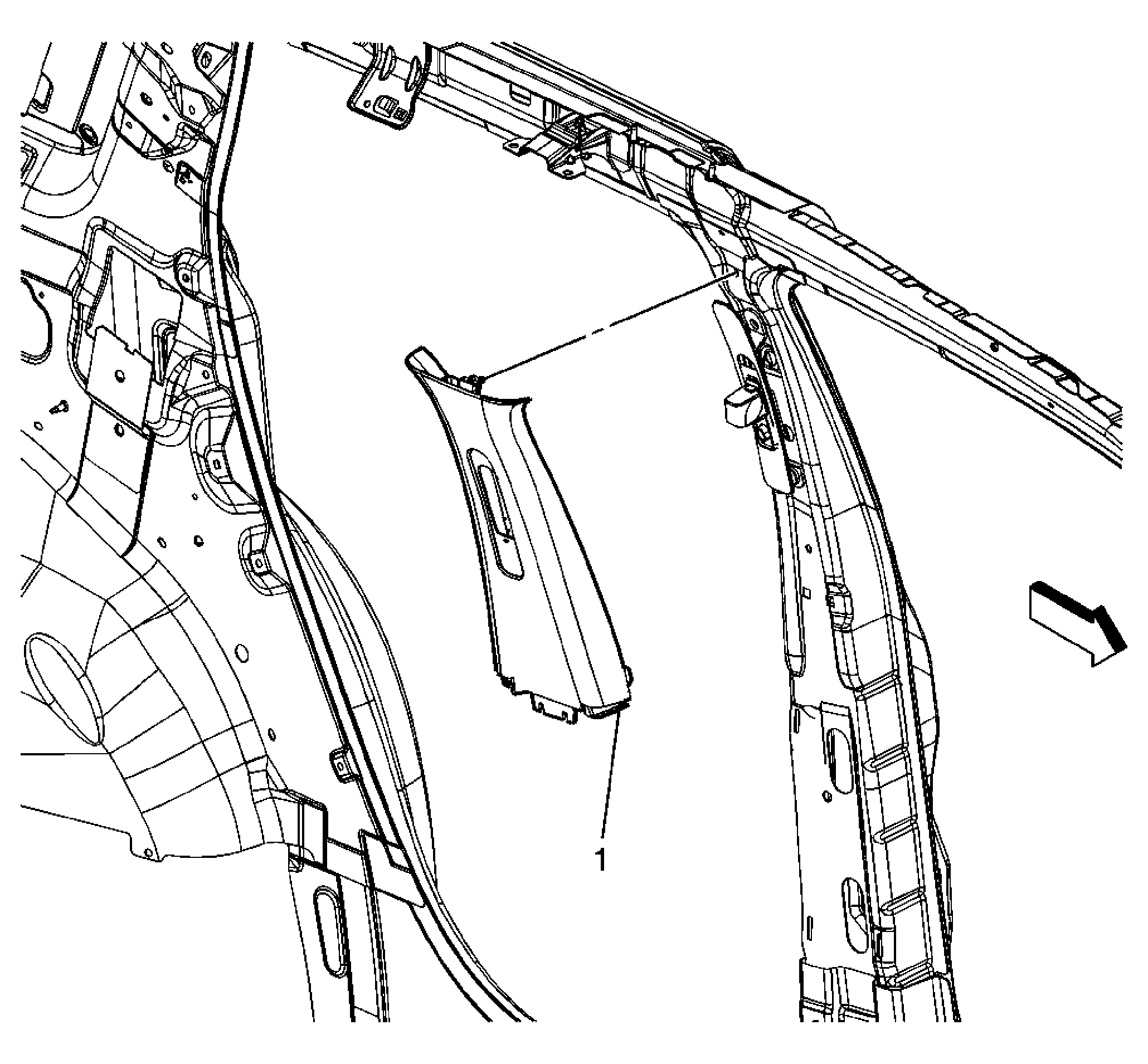

Fig 1: View Of Center Pillar Upper Garnish Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front seat belt adjuster cover, bolt and guide ONLY, from the center pillar. Refer to Seat Belt Retractor Pretensioner Replacement - Front . Remove the center pillar lower garnish molding. Refer to Center Pillar Lower Garnish Molding Replacement .
1	Center Pillar Upper Trim Panel Tip: Starting at the top, gently pull on the garnish molding to disengage the attaching clips.

Callout

Component Name

Preliminary Procedure

Remove the front seat belt adjuster cover, bolt and guide ONLY, from the center pillar. Refer to Seat Belt Retractor Pretensioner Replacement - Front .
Remove the center pillar lower garnish molding. Refer to Center Pillar Lower Garnish Molding Replacement .

Center Pillar Upper Trim Panel
Tip: Starting at the top, gently pull on the garnish molding to disengage the attaching clips.
