Rear Seat Center Belt Buckle Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

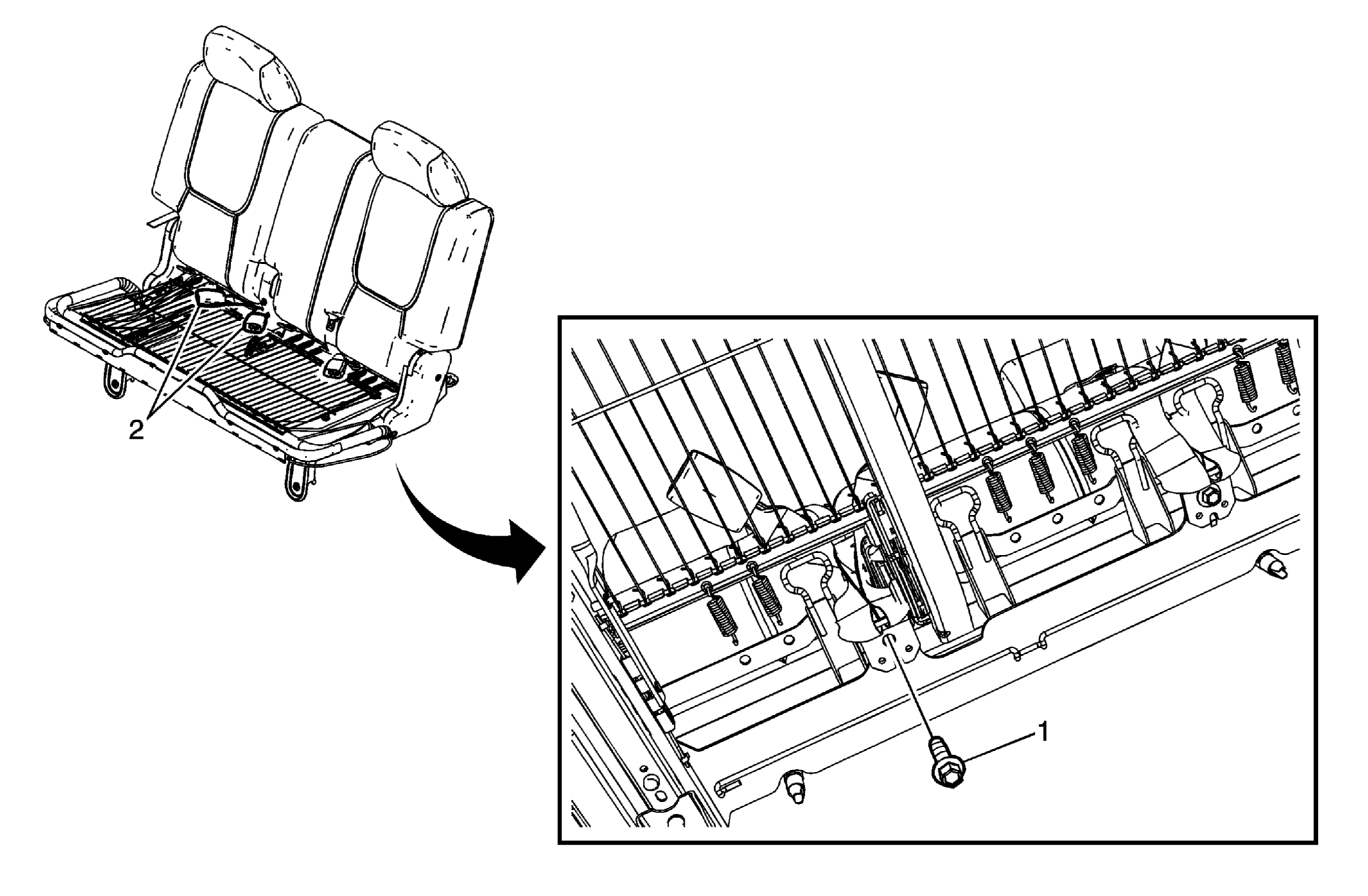

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the second row seat cushion cover/pad. Refer to Rear Seat Cushion Cover and Pad Replacement . |
|
| 1 | Rear Seat Belt Buckle Bolt
CAUTION:
Refer to Fastener Caution
. Procedure: Apply Permatex® 24200 on all restraint fasteners prior to installation. Tighten: 50 N.m (37 lb ft) |
| 2 | Rear Seat Belt Buckle |
