Instrument Panel Outer Trim Cover Replacement - Right Side
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

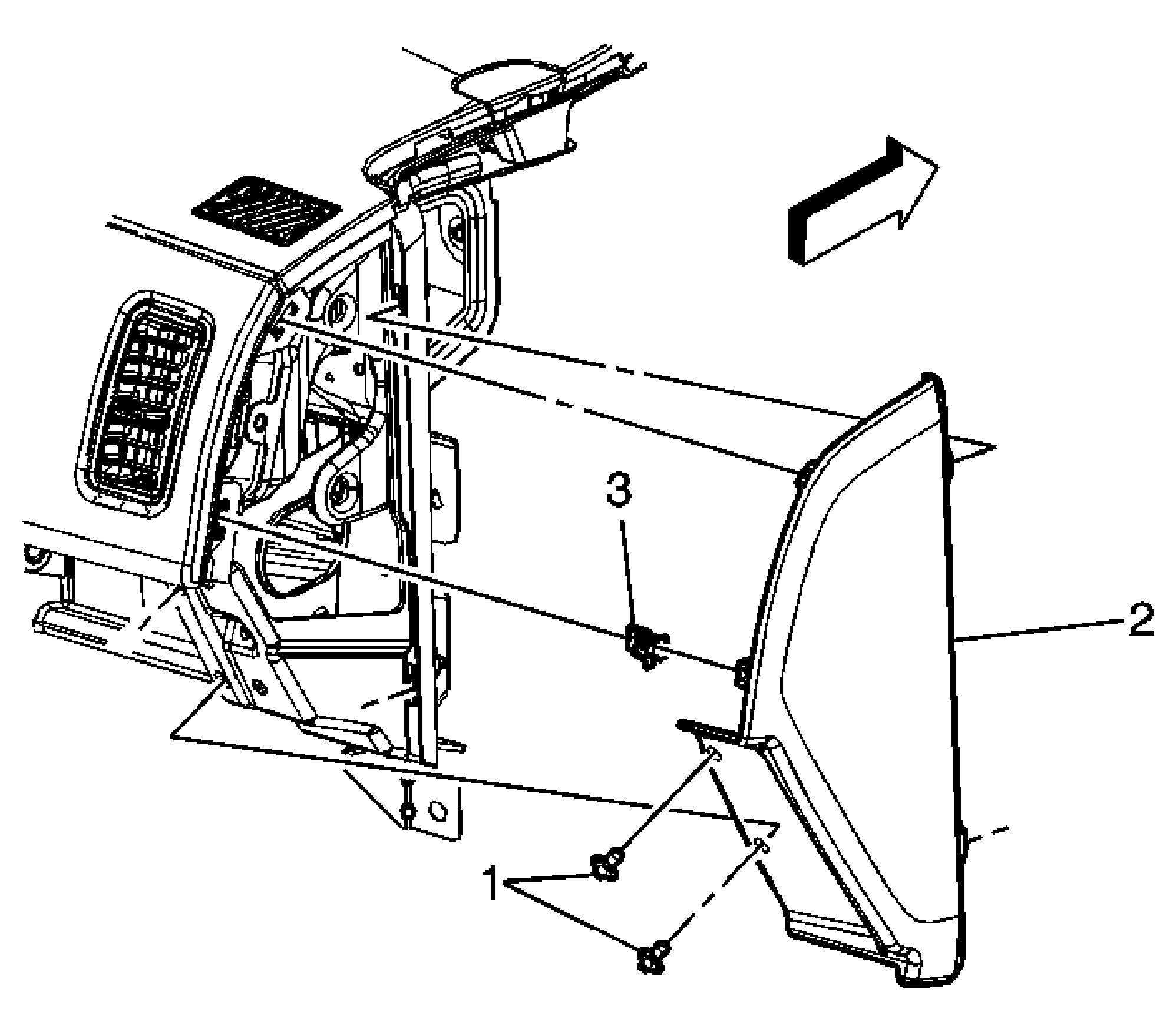

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Side Trim Panel Push-in Retainer (Qty: 2) Tip: Open the instrument panel compartment to access the push in retainers. |
| 2 | Instrument Panel Side Trim Panel Right Tip: Pull away from the instrument panel to disengage the retainer clips. |
| 3 | Instrument Panel Side Trim Panel Retainer Clip (Qty: 2) |
