Rear Turn Signal Lamp Bulb Replacement (Equinox)
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove either the Left or Right tail lamp assembly. Refer to Tail Lamp Replacement . |
|

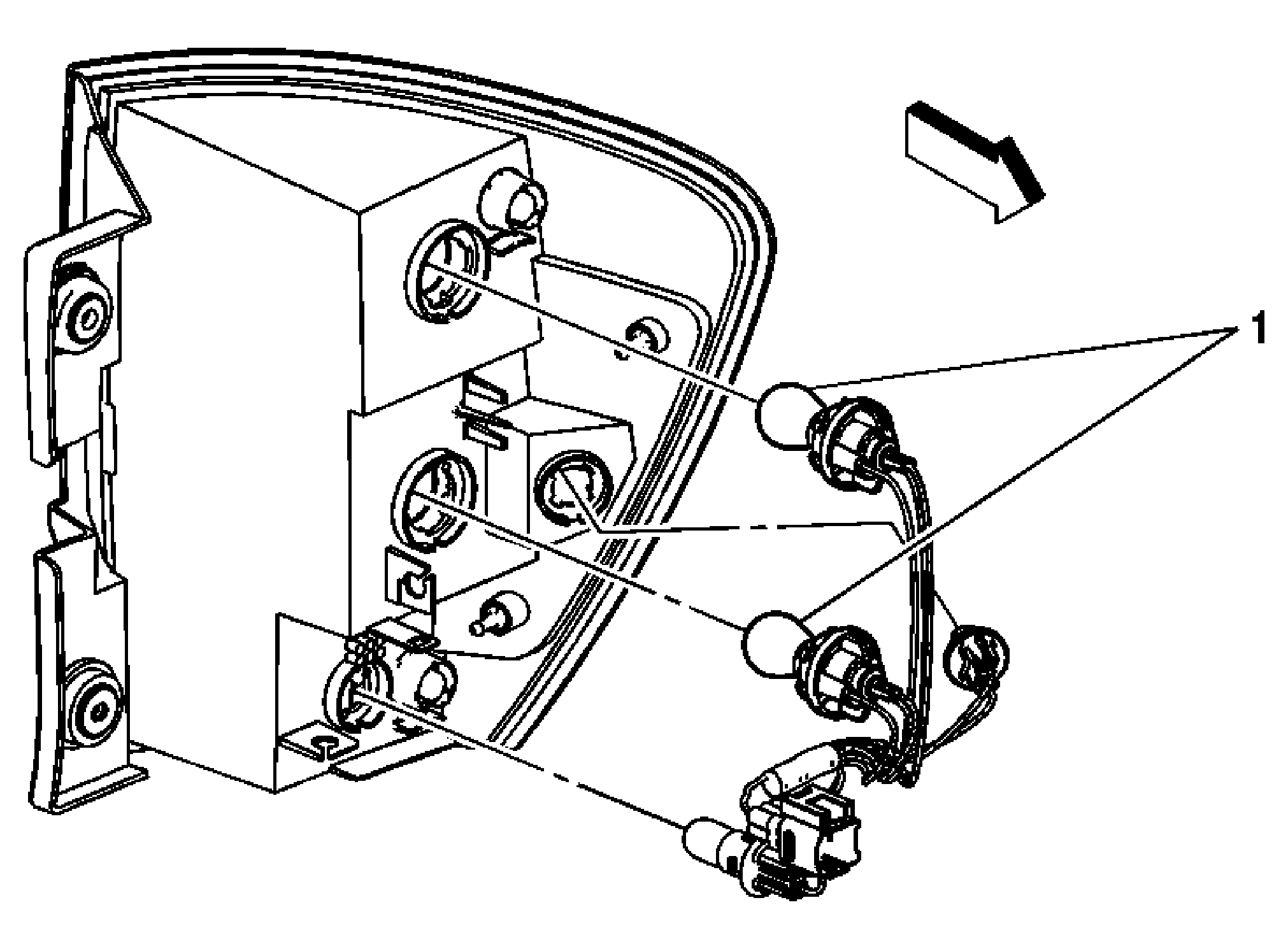

| 1 | Park / Stop / Turn Directional Bulb (Qty: 2) Tip: Remove the bulb socket from the lens housing by turning the socket counterclockwise a quarter turn and then remove the bulbs. |
