Tail Lamp Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

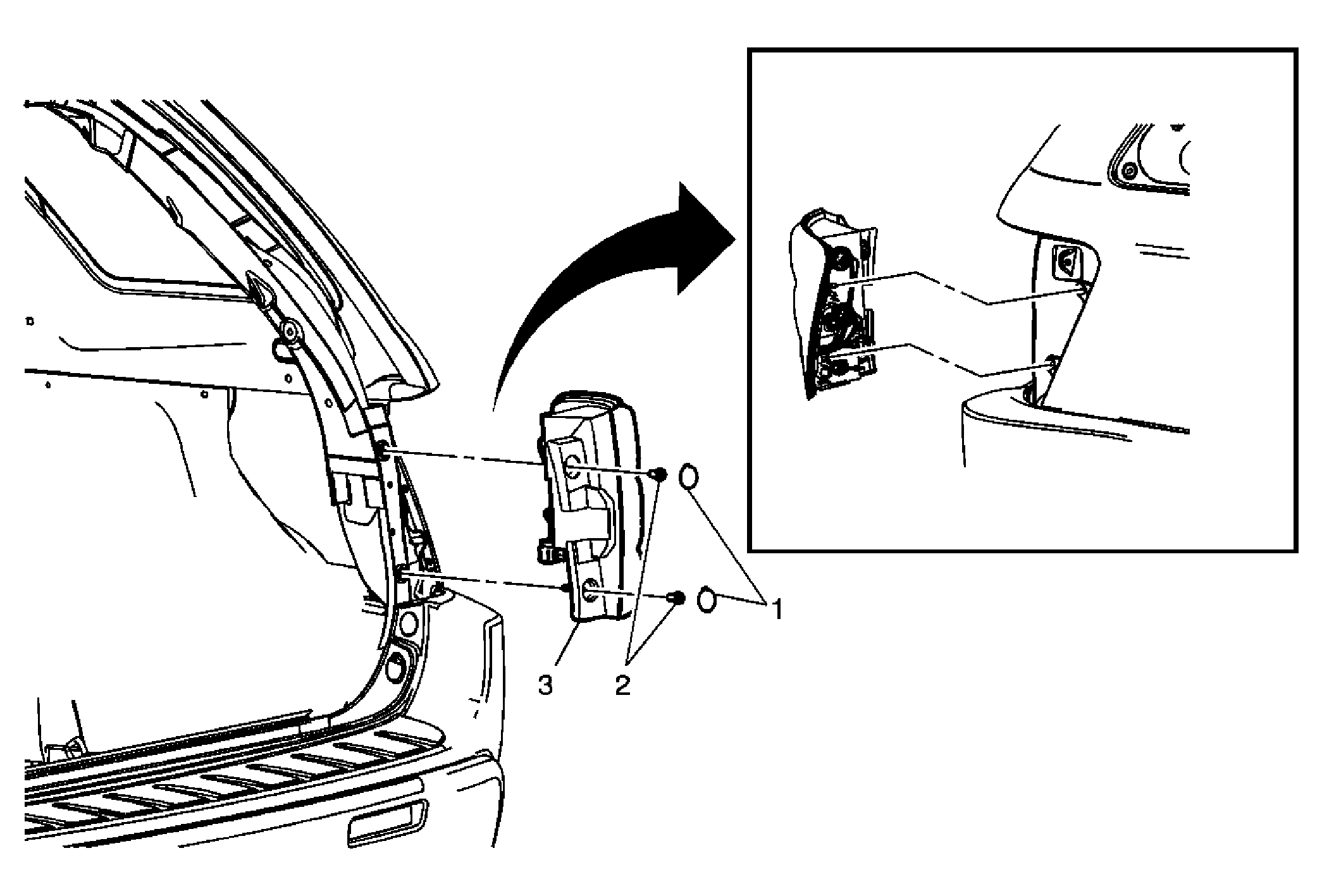

Fig 1: Locating Tail Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail Lamp Screw Finish Cover (Qty: 2) Tip: Use a small flat bladed tool to aid in the removal of the finish covers.
2	Tail Lamp Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
3	Tail Lamp Assembly Procedure Pull outward at the forward edge of the tail lamp assembly to disengage the two retainers. Disconnect the electrical connector.

Callout

Component Name

Tail Lamp Screw Finish Cover (Qty: 2)
Tip: Use a small flat bladed tool to aid in the removal of the finish covers.

Tail Lamp Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 2.5 N.m (22 lb in)

Tail Lamp Assembly

Procedure

Pull outward at the forward edge of the tail lamp assembly to disengage the two retainers.
Disconnect the electrical connector.
