Rear Side Marker Lamp Bulb Replacement (Torrent)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

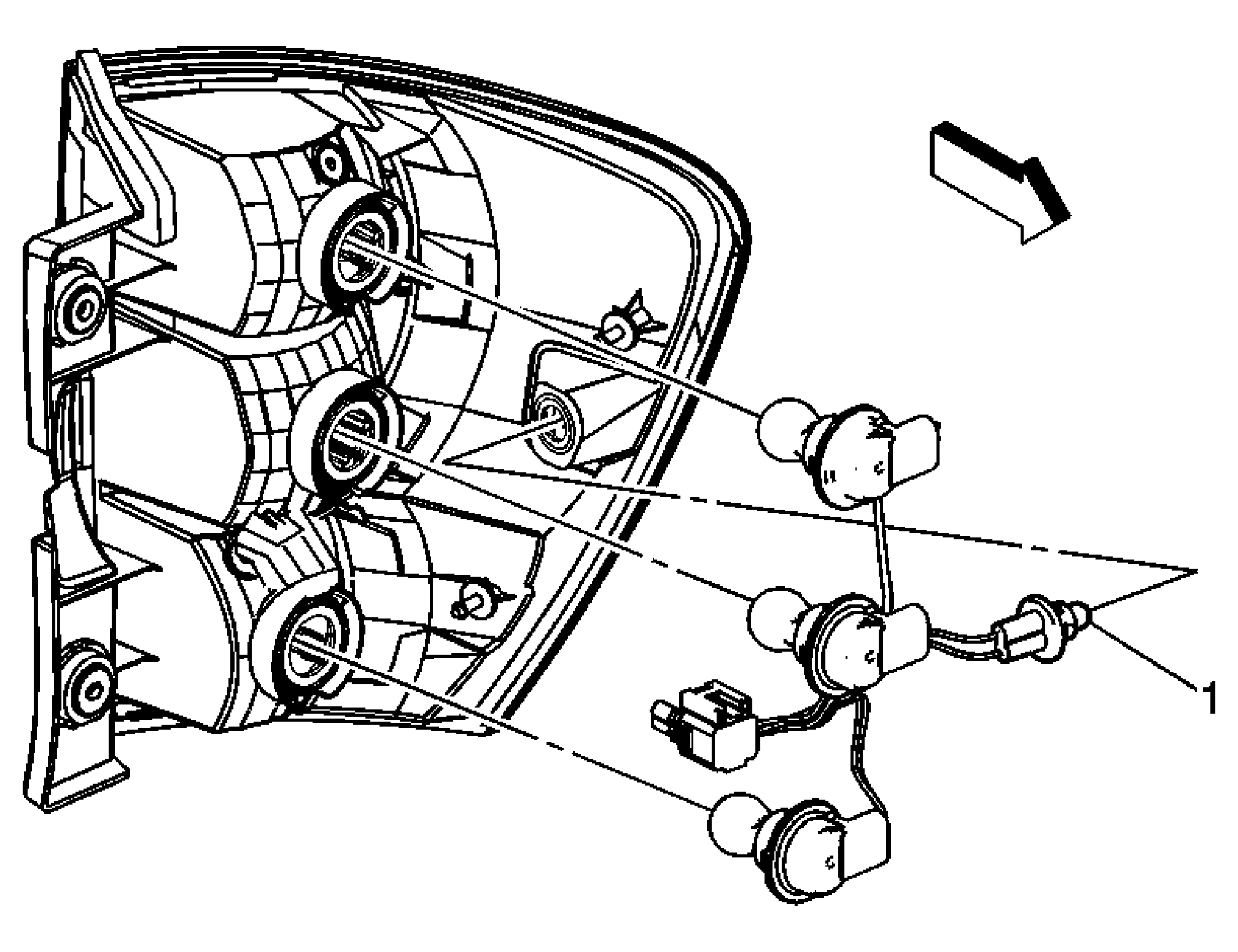

Fig 1: View Of Rear Side Marker Lamp Bulb (Torrent)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove either the Left or Right tail lamp assembly. Refer to Tail Lamp Replacement .
1	Side Marker Lamp Bulb Tip: Remove the bulb socket from the lens housing by turning the socket counterclockwise a quarter turn and pull the bulb straight out from the socket.
