High Mount Stop Lamp Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

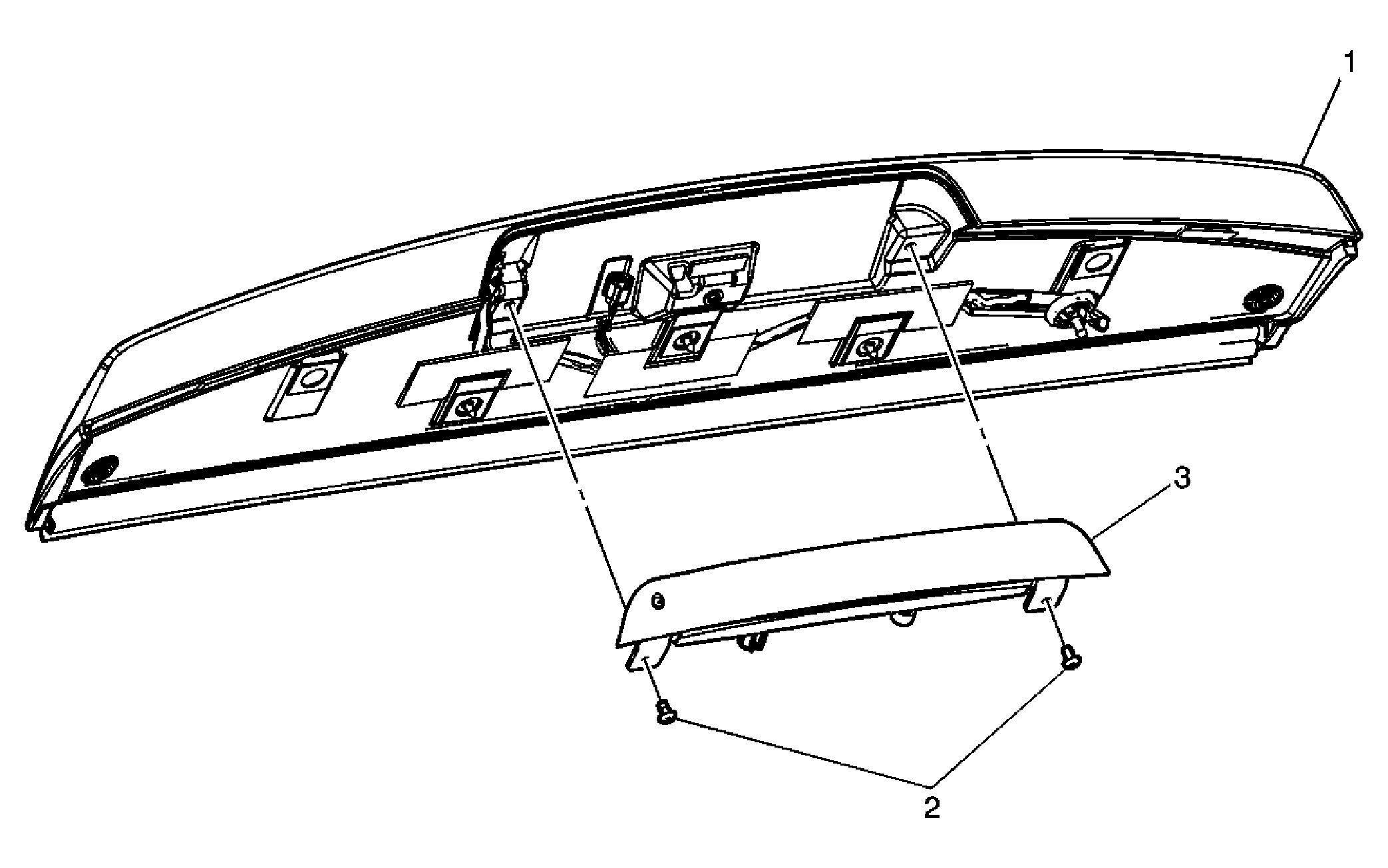

Fig 1: View Of High Mounted Stop Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear End Spoiler Assembly Refer to Rear Spoiler Replacement .
2	Center High Mounted Stop Lamp Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
3	Center High Mounted Stop Lamp Assembly Procedure Disconnect the rear washer hose from the rear washer nozzle. Remove the rear washer nozzle from the stop lamp assembly if replacing. Disconnect the electrical connector.

Callout

Component Name

Rear End Spoiler Assembly
Refer to Rear Spoiler Replacement .

Center High Mounted Stop Lamp Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 2.5 N.m (22 lb in)

Center High Mounted Stop Lamp Assembly

Procedure

Disconnect the rear washer hose from the rear washer nozzle.
Remove the rear washer nozzle from the stop lamp assembly if replacing.
Disconnect the electrical connector.
