Rear Spoiler Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

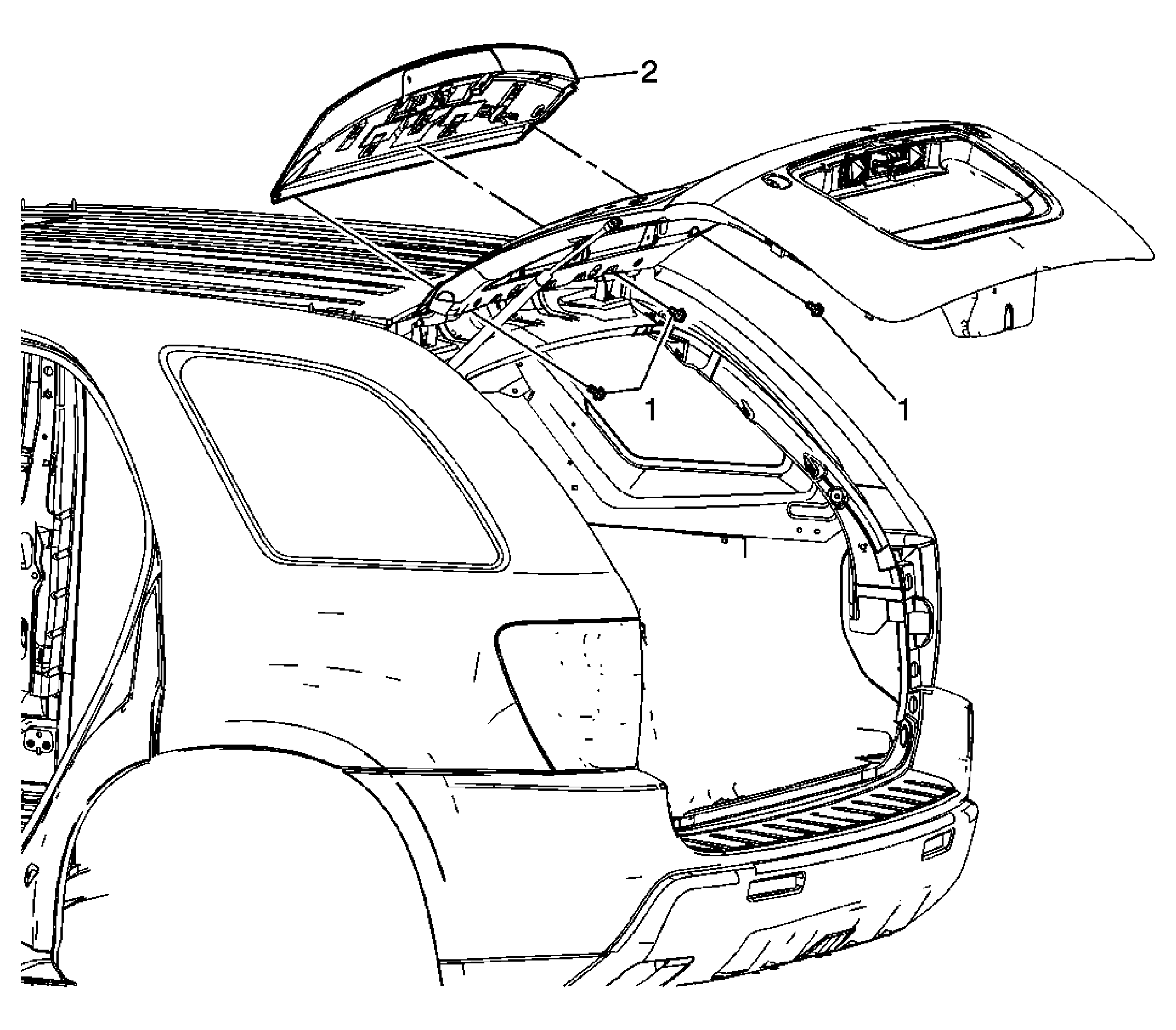

Fig 1: View Of Rear Spoiler

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the liftgate upper interior trim panel. Refer to Liftgate Trim Panel Replacement .
1	Rear End Spoiler Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
2	Rear End Spoiler Assembly Procedure Disconnect the stop lamp electrical connector. Disconnect the rear washer hose.

Callout

Component Name

Preliminary Procedure:
Remove the liftgate upper interior trim panel. Refer to Liftgate Trim Panel Replacement .

Rear End Spoiler Bolt (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 8 N.m (71 lb in)

Rear End Spoiler Assembly

Procedure

Disconnect the stop lamp electrical connector.
Disconnect the rear washer hose.
