Instrument Panel Compartment Door Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

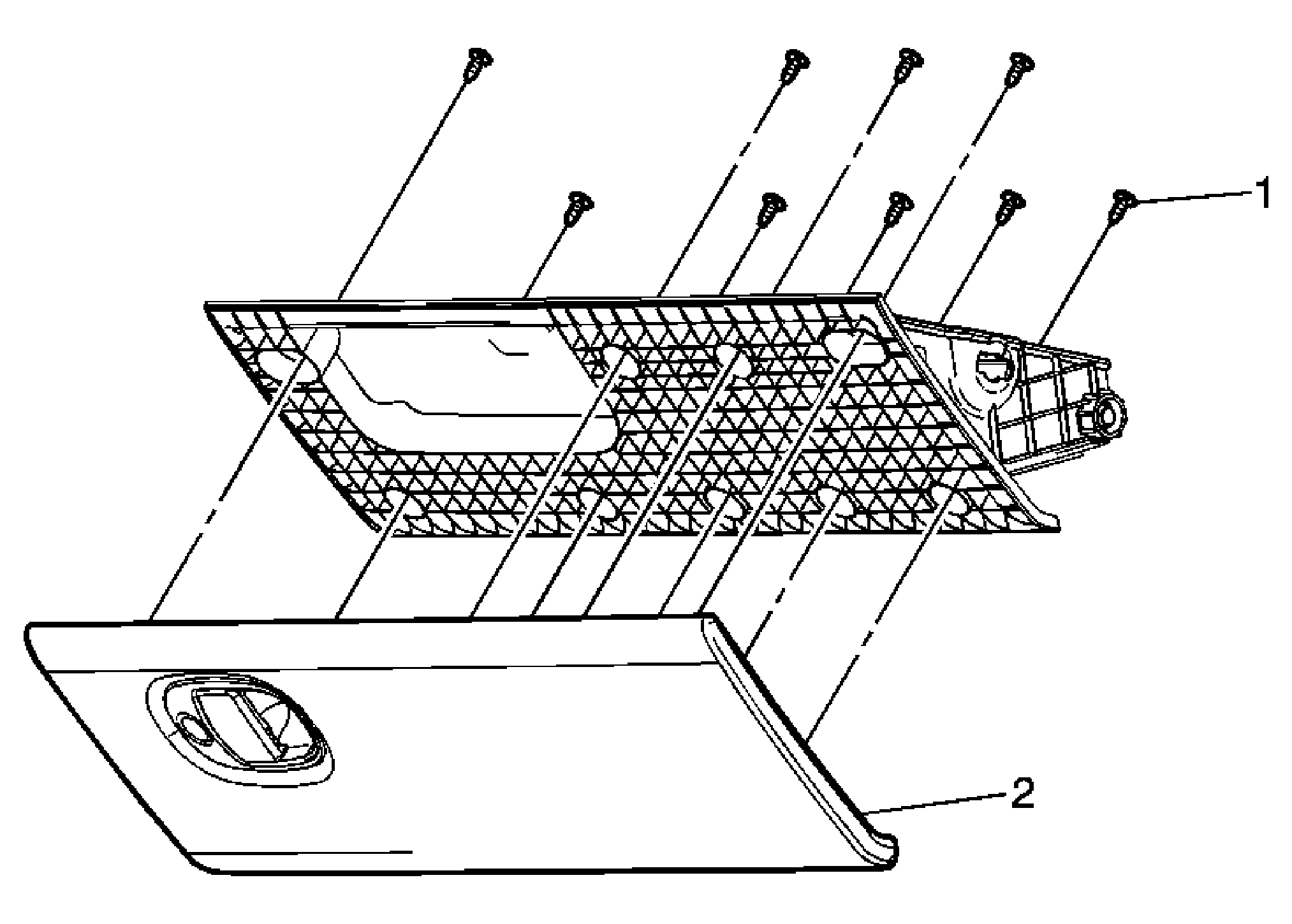

Fig 1: View Of Instrument Panel Compartment Door
GM1719477Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1 Instrument Panel Compartment Door Screw (Qty: 9)
CAUTION: Refer to Fastener Caution .

Tighten:  2 N.m (18 lb in)
2 Instrument Panel Compartment Door
