Instrument Panel Compartment Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

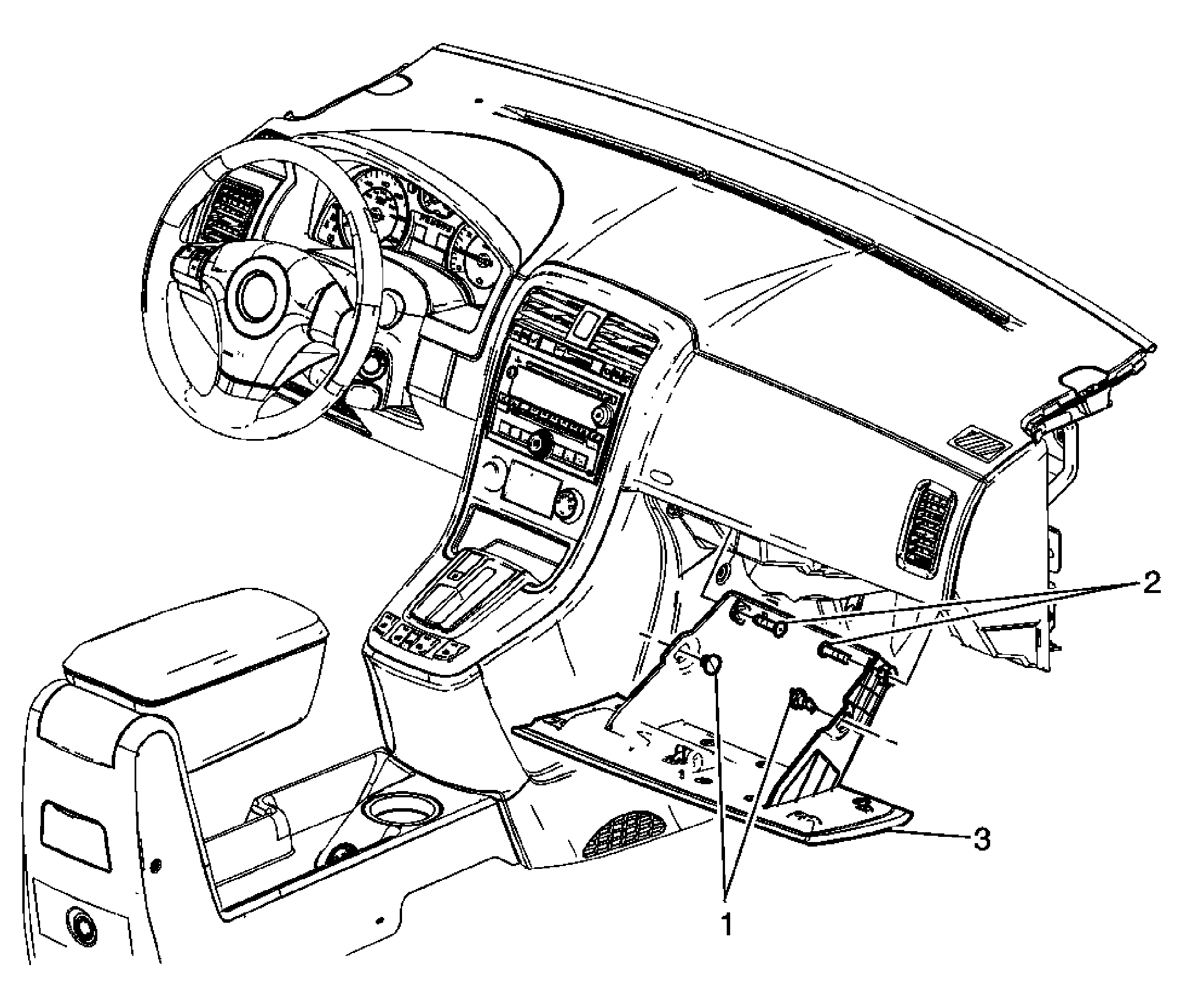

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . | |
| 1 | Instrument Panel Compartment Pivot Pin (Qty: 2) |
| 2 | Instrument Panel Compartment Door Stop (Qty: 2) Tip: Rotate and pull inward to remove. |
| 3 | Instrument Panel Compartment |
