Instrument Panel Compartment Door Latch Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

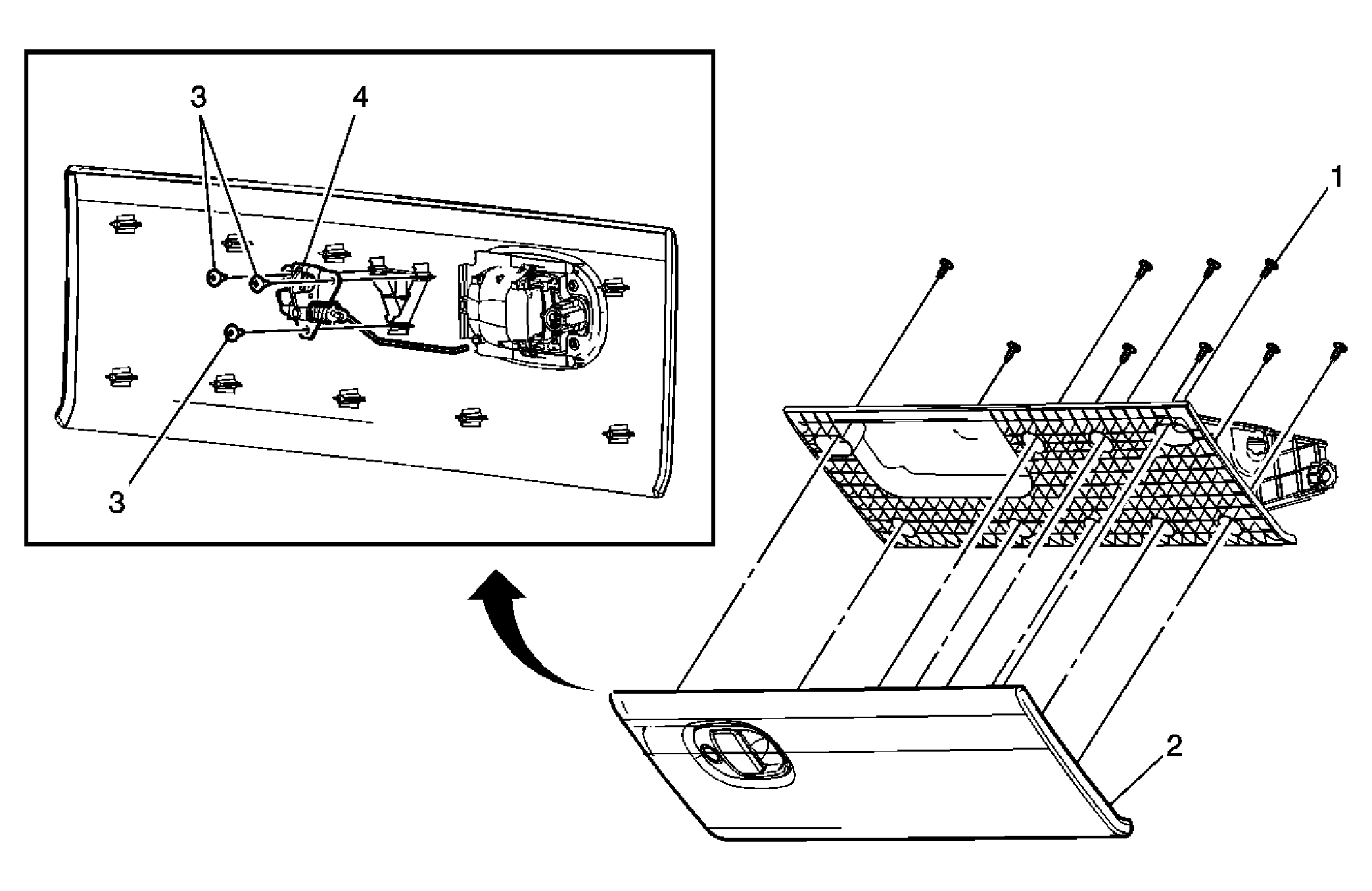

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement . |
|
| 1 | Instrument Panel Compartment Door Screw (Qty: 9)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Instrument Panel Compartment Door |
| 3 | Instrument Panel Compartment Door Latch Screw (Qty: 3) Tighten: 2 N.m (18 lb in) |
| 4 | Instrument Panel Compartment Door Latch Tip: Disengage the handle from the latch. |
