Front Seat Lumbar Support Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

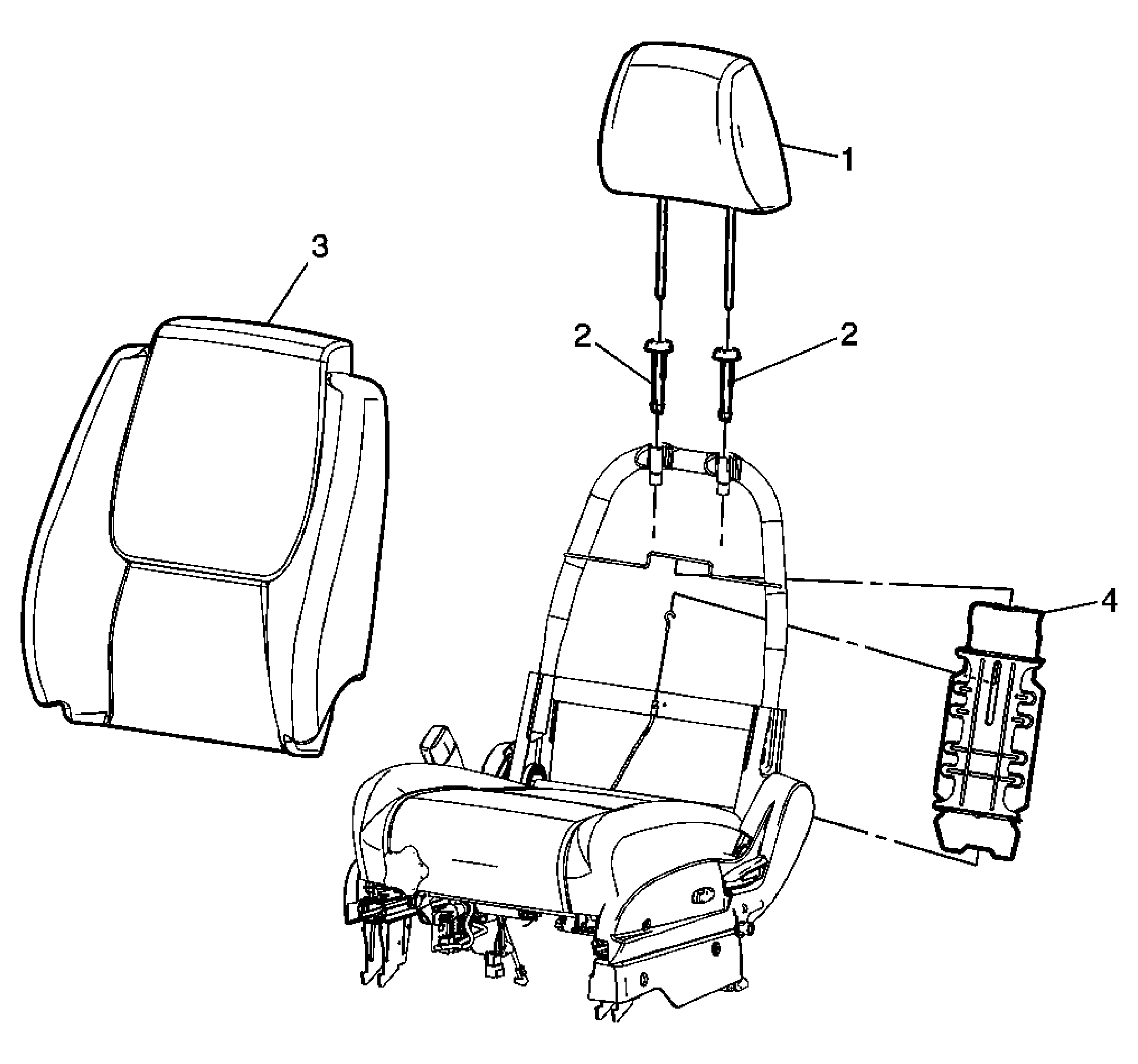

Fig 1: View Of Front Seat Lumbar Support

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the front seat. Refer to Front Seat Replacement - Bucket .
1	Front Seat Head Restraint Refer to Driver or Passenger Seat Head Restraint Replacement .
2	Front Seat Head Restraint Guides Tip: Squeeze the bottom of the guides together and push upward to remove.
3	Seat Back Cushion Cover and Pad Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Fold Flat) or Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Non-Fold Flat) .
4	Front Seat Back Lumbar Tip: Adjust the lumbar knob until the lumbar is at the position of the least support. Remove the lumbar cable end from the lumbar unit by compressing the unit while lifting out the barrel end of the cable assembly. Using a flat-bladed tool, twist out the upper portion of the lumbar unit from the seat frame cross wire. Using a flat-bladed tool, twist out the lower portion of the lumbar unit from the seat frame cross wire.
