Driver or Passenger Seat Back Cushion Frame Replacement (Fold Flat)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

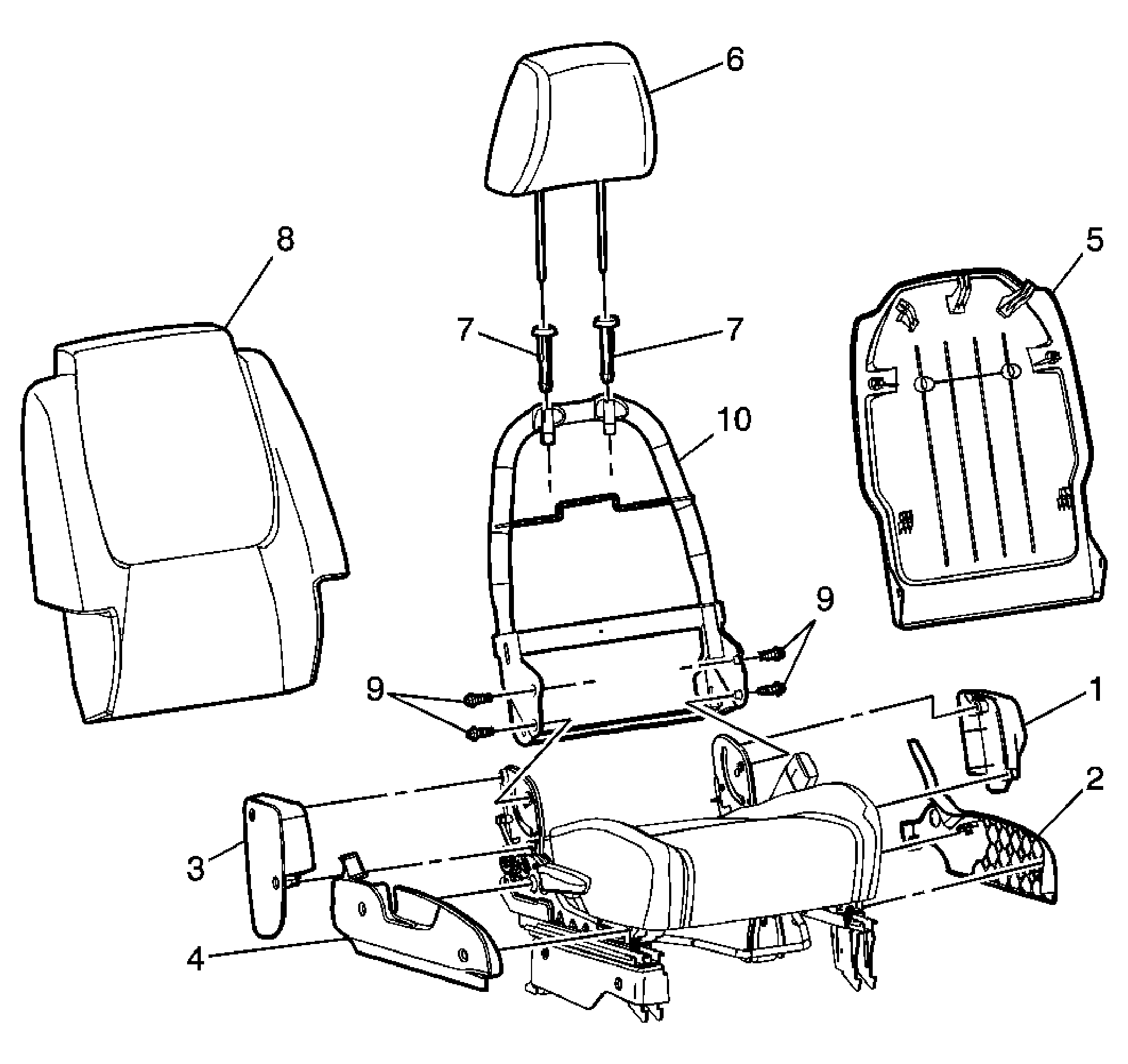

Fig 1: View Of Front Seat Back Frame (Fold Flat)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front seat. Refer to Front Seat Replacement - Bucket .
1	Front Seat Outer Recliner Finish Cover Refer to Front Seat Back Recliner Outer Trim Panel Replacement (Fold Flat) .
2	Front Seat Outer Adjuster Finish Cover Refer to Front Seat Cushion Outer Trim Panel Replacement (Non-Fold Flat) or Front Seat Cushion Outer Trim Panel Replacement (Fold Flat) .
3	Front Seat Inner Recliner Finish Cover Refer to Front Seat Back Recliner Inner Trim Panel Replacement (Fold Flat) .
4	Front Seat Inner Adjuster Finish Panel Refer to Front Seat Cushion Inner Trim Panel Replacement (Non-Fold Flat) .
5	Front Seat Back Finish Panel Refer to Driver or Passenger Seat Back Cushion Finish Panel Replacement (Fold Flat) .
6	Front Seat Head Restraint Refer to Driver or Passenger Seat Head Restraint Replacement .
7	Front Seat Head Restraint Guides Tip: Squeeze the bottom of the guides together and push upward to remove.
8	Front Seat Back Cushion Cover and Pad Procedure Disconnect the lower J-hook retainer from the seat back trim cover. Remove the seat back trim cover and pad from the seat back frame.
9	Front Seat Back Cushion Frame Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 70 N.m (52 lb ft)
10	Front Seat Back Cushion Frame
