Body Rear Corner Garnish Molding Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

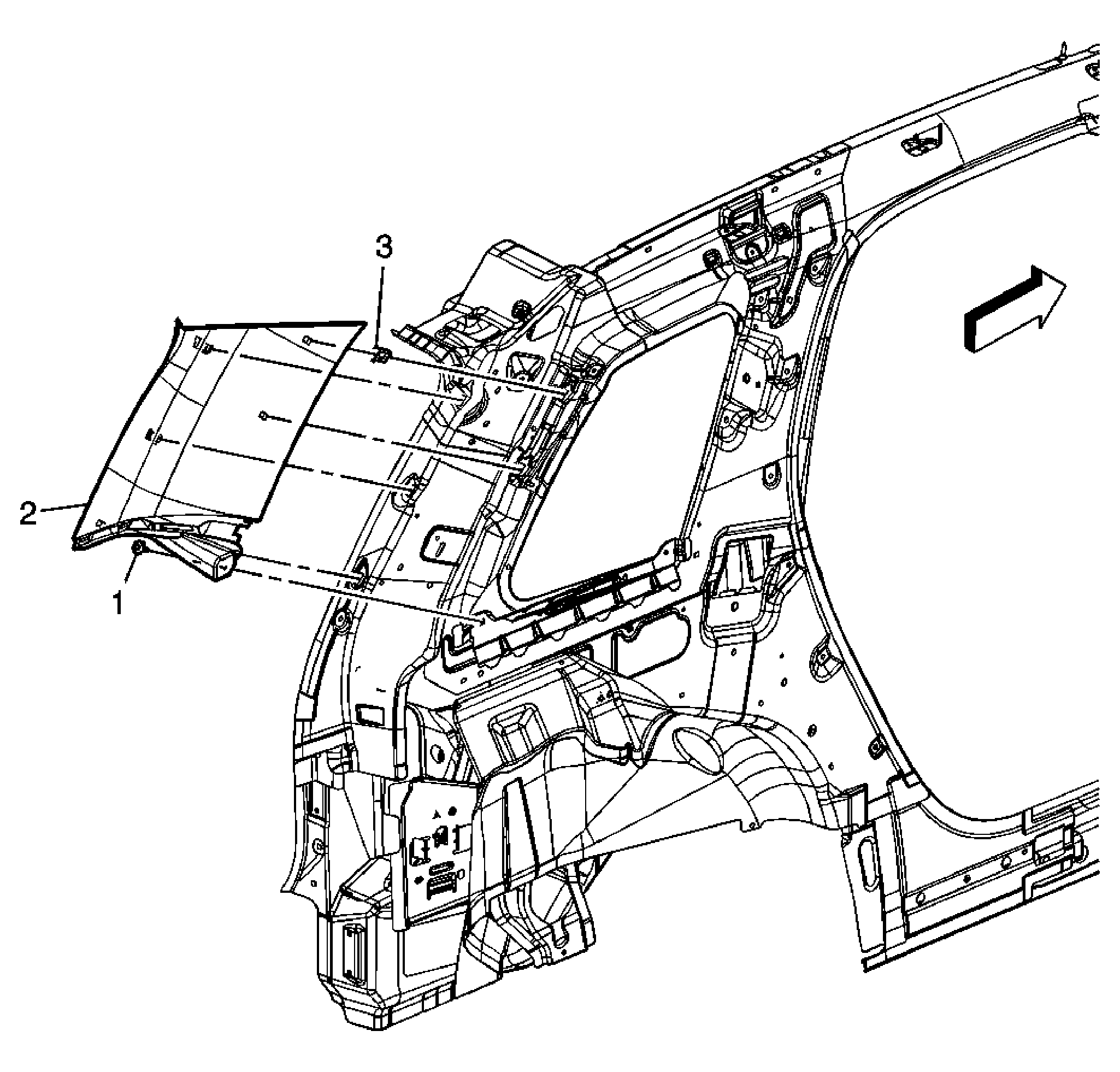

Fig 1: View Of Body Rear Corner Garnish Molding
GM1714814Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the rear door sill. Refer to Liftgate Door Sill Plate Replacement .
  2. Remove the rear quarter trim. Refer to Quarter Lower Rear Trim Panel Replacement .
1 Back Body Opening Side Finish Panel Bolt
CAUTION: Refer to Fastener Caution .

Tighten:  9 N.m (80 lb in)
2 Back Body Opening Side Finish Panel
3 Back Body Opening Side Finish Panel Retainer Clip (Qty: 5)
