Liftgate Door Sill Plate Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

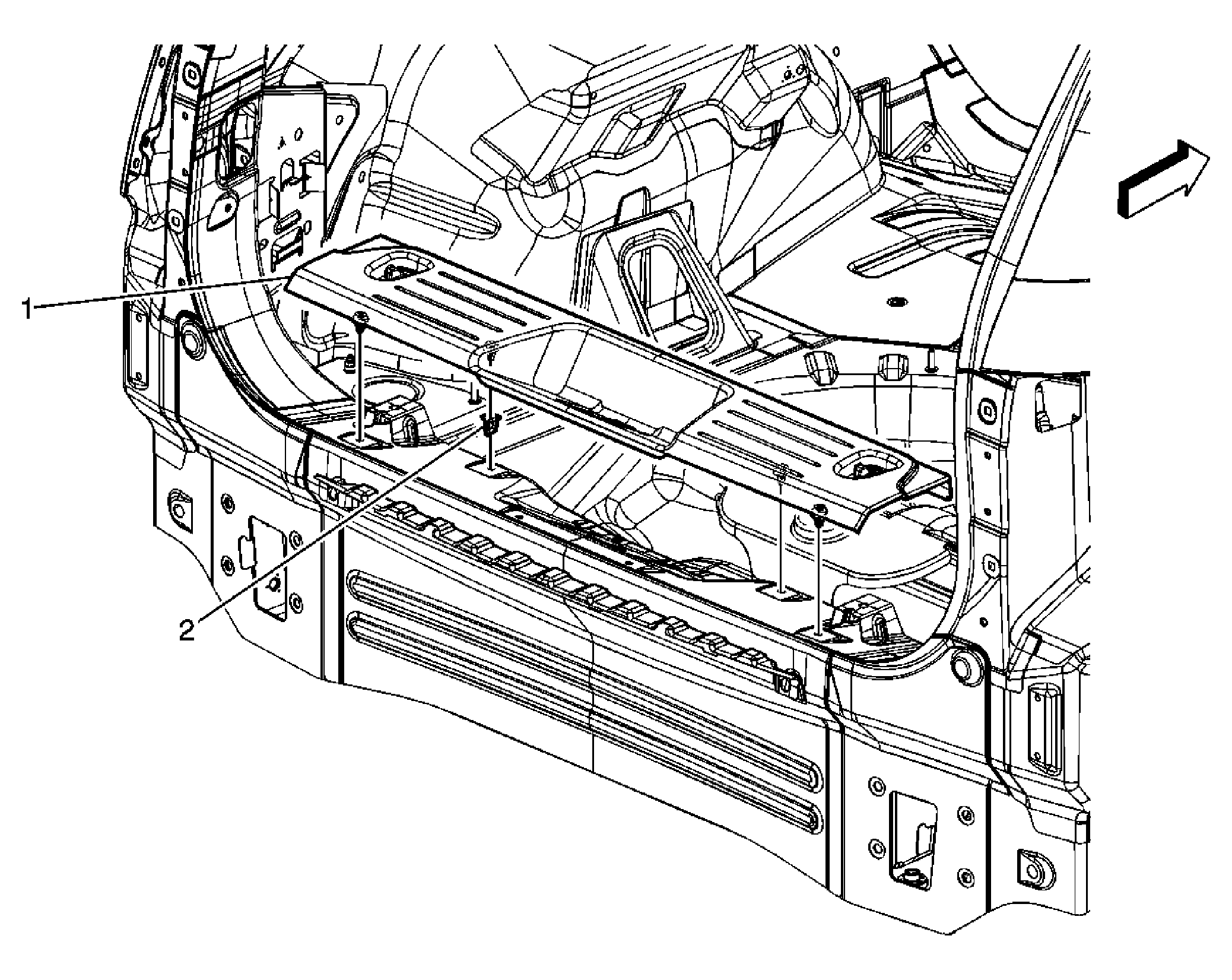

Fig 1: View Of Liftgate Door Sill Plate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the cargo hooks from the rear end trim finish panel. Remove the rear load floor.
1	Rear End Trim Finish Panel Assembly
2	Rear End Trim Finish Panel Retainer Clip (Qty: 4)

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the cargo hooks from the rear end trim finish panel.
Remove the rear load floor.

Rear End Trim Finish Panel Assembly

Rear End Trim Finish Panel Retainer Clip (Qty: 4)
