Rear Energy Absorber Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

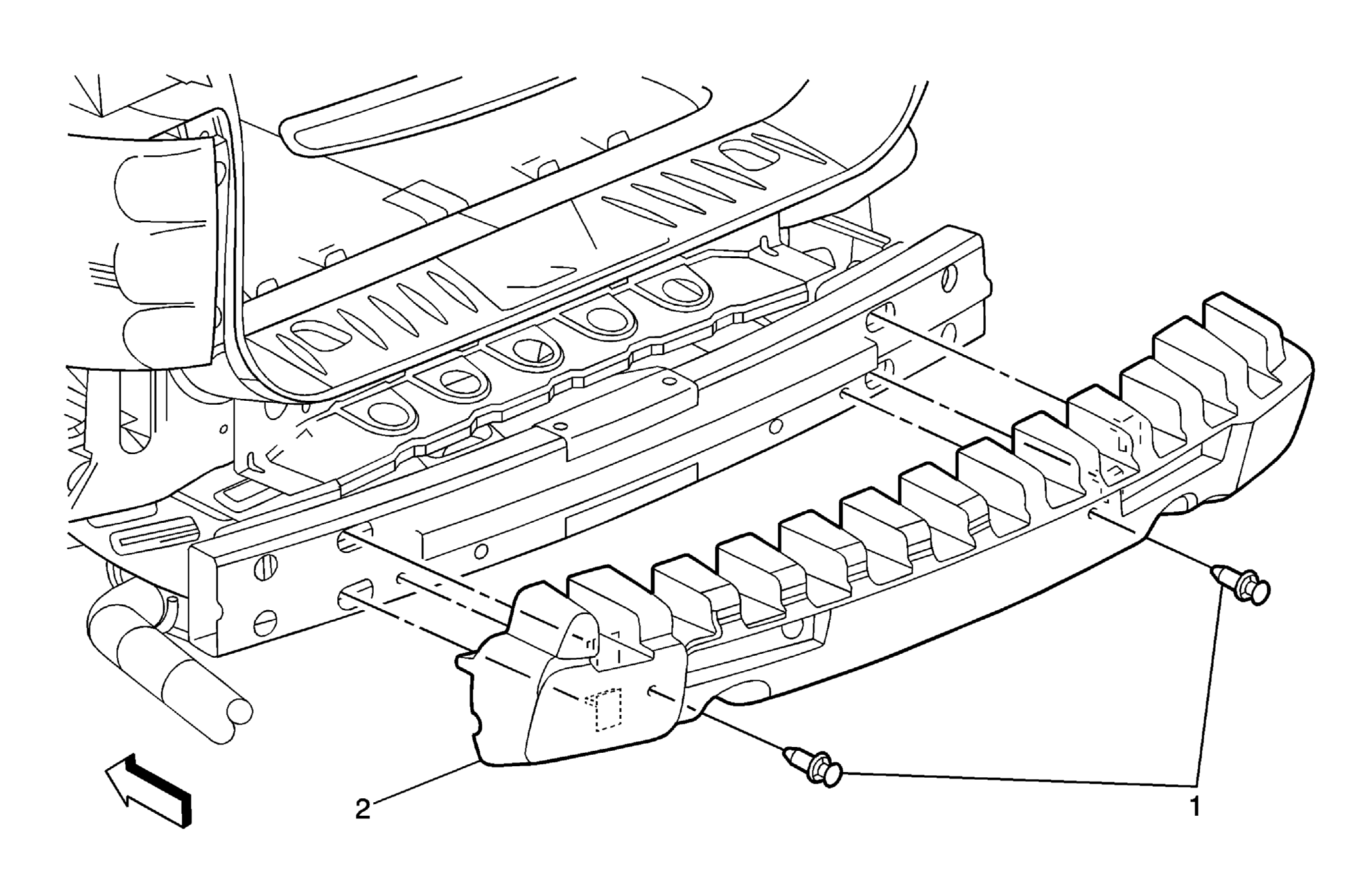

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement . |
|
| 1 | Plastic Push-In Pins (Qty: 2) |
| 2 | Rear Energy Absorber |
