Rear Bumper Fascia Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

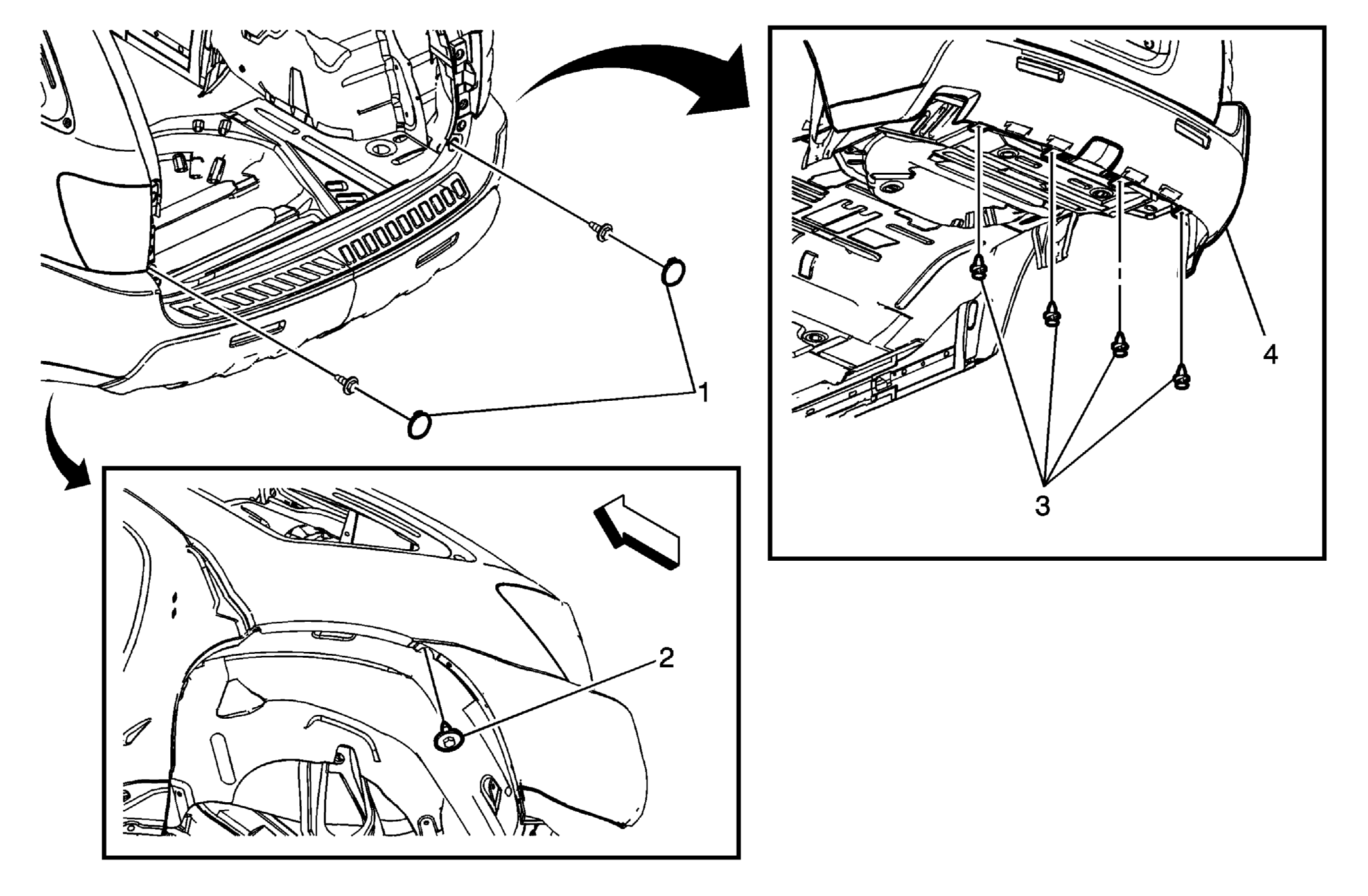

Fig 1: View Of Rear Bumper Fascia Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the Rear Wheelhouse liner. Refer to Rear Wheelhouse Panel Liner Replacement
1	Rear Bumper Upper Fascia Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 6 N.m (53 lb in)
2	Rear Bumper Fascia to Fender Screw (Qty: 2) Tighten: 2 N.m (18 lb in)
3	Plastic Push Pin Retainer (Qty: 4)
4	Rear Bumper Fascia Procedure Disconnect any electrical connectors as needed. Pull gently on the sides of the rear bumper fascia to disengage from the rear quarter panels. Transfer any parts as needed.
