Rear Bumper Step Pad Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

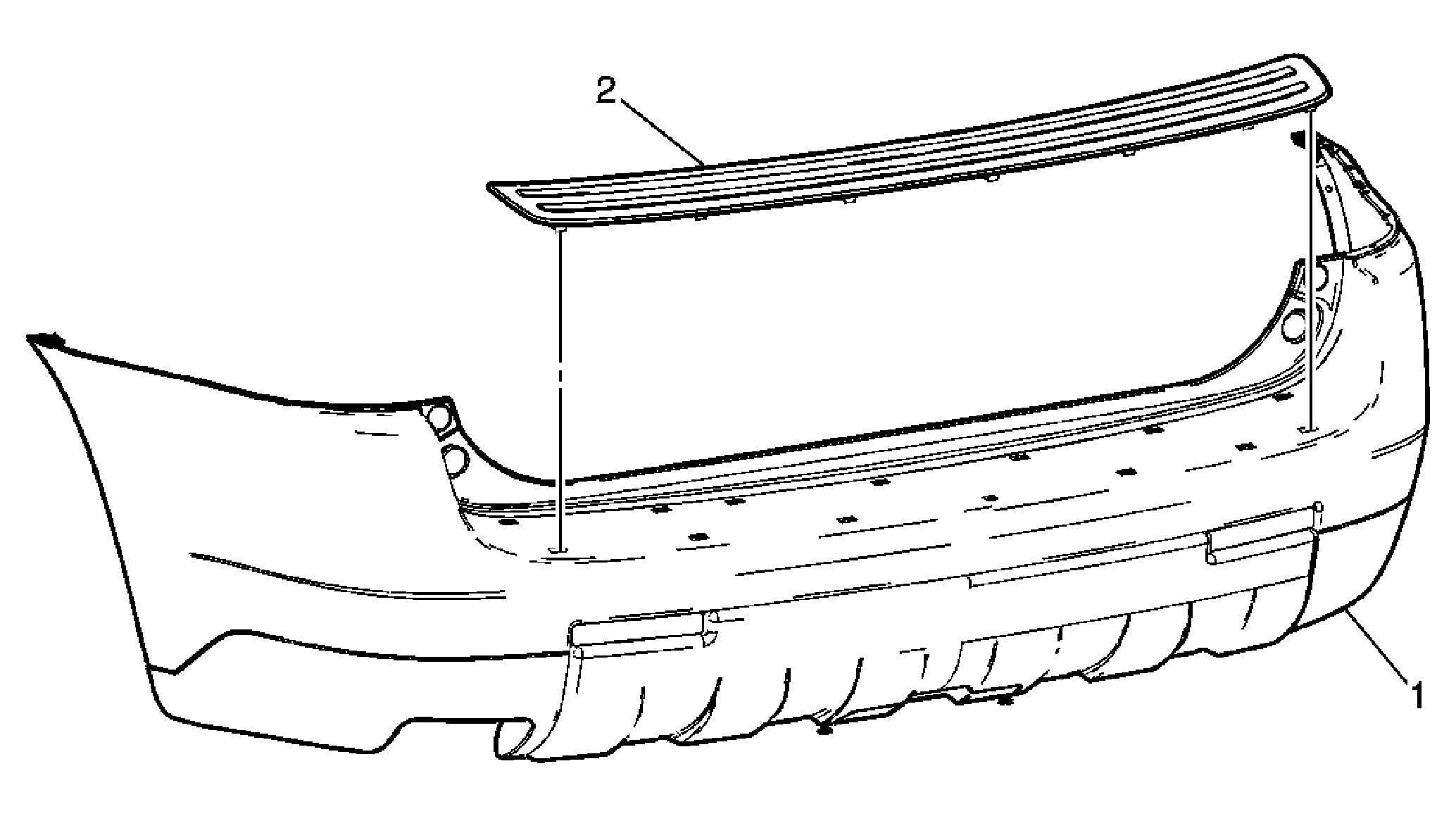

Fig 1: View Of Rear Bumper Step Pad

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Rear Bumper Fascia Assembly Refer to Rear Bumper Fascia Replacement .
2	Rear Fascia Step Pad Tip: Release the tabs that secure the step pad to the rear fascia from the bottom side of the rear fascia.
