Rear Bumper Impact Bar Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

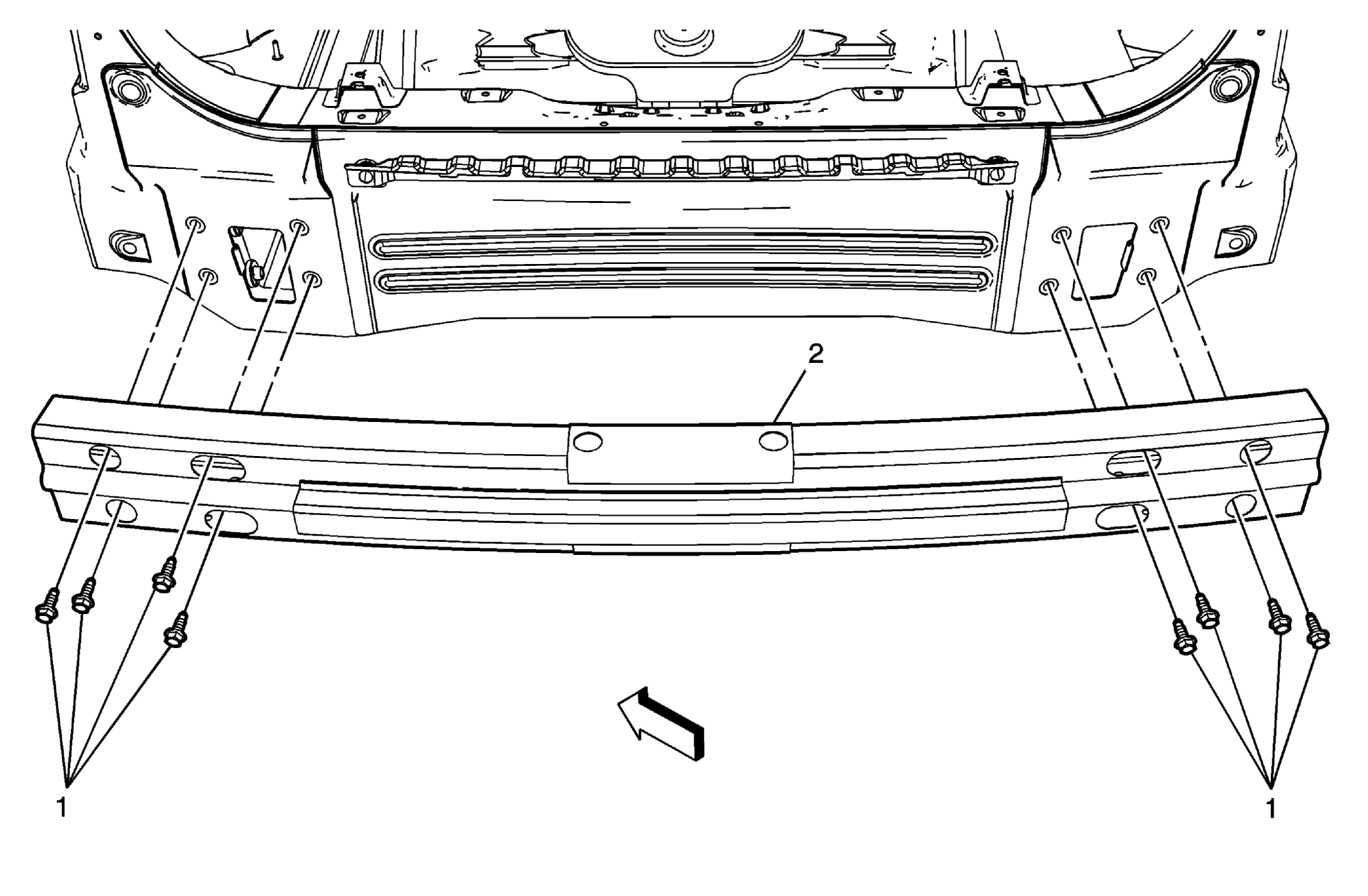

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear energy absorber. Refer to Rear Energy Absorber Replacement . |
|
| 1 | Rear Bumper Impact Bar Bolt (Qty: 8)
CAUTION:
Refer to Fastener Caution
.
Tighten: 25 N.m(18 lb ft) |
| 2 | Rear Bumper Impact Bar |
