Rocker Panel Molding Support Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

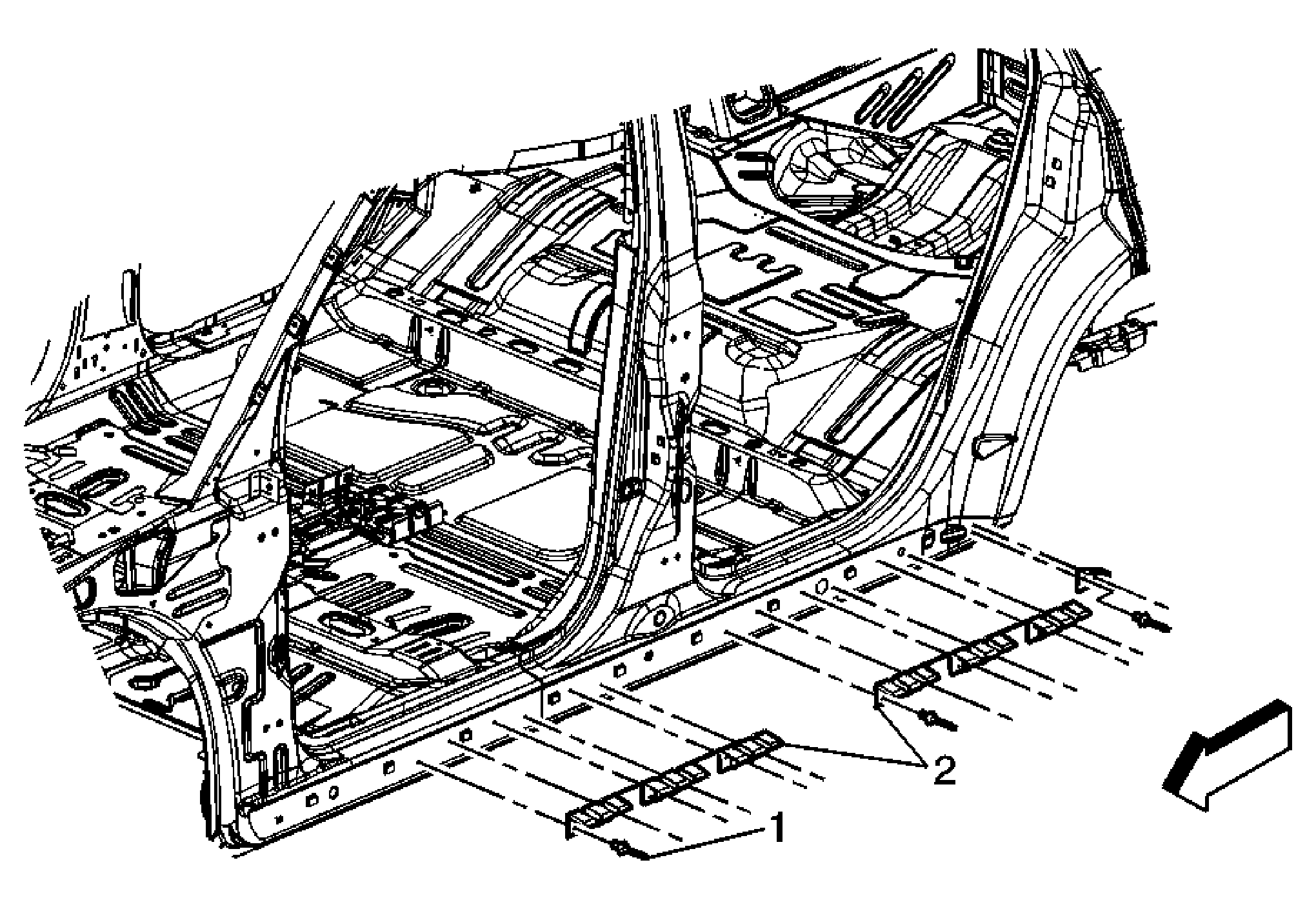

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rocker panel molding. Refer to Rocker Panel Molding Replacement . |
|
| 1 | Rocker Panel Molding Support Rivet
WARNING:
Refer to Eye Protection Warning
. Tip: Drill out the rivet to remove and install new rivets. |
| 2 | Rocker Panel Molding Support |
