Rocker Panel Molding Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

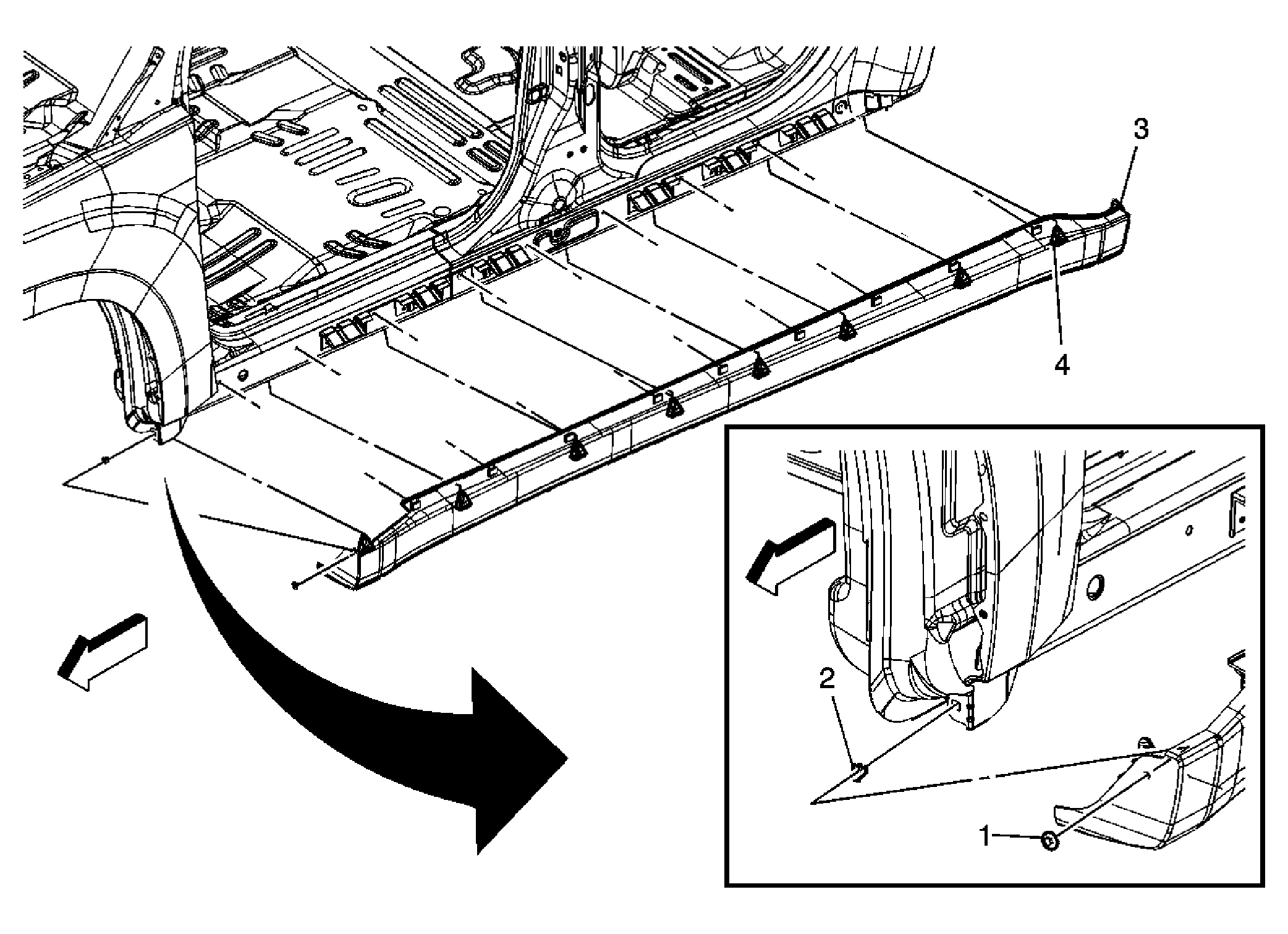

| Callout | Component Name |
|---|---|
| 1 | Rocker Panel Molding Screw
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Rocker Panel Molding Nut |
| 3 | Rocker Panel Integral Clip (Qty: 9) |
| 4 | Rocker Panel Molding Integral Retainer (Qty: 8) Tip: Remove the rocker panel from the vehicle by prying the clips away from the vehicle. Retainers break easily, install new retainers as necessary. |
