Rear Bumper Fascia Center Grille Replacement (Equinox SS)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

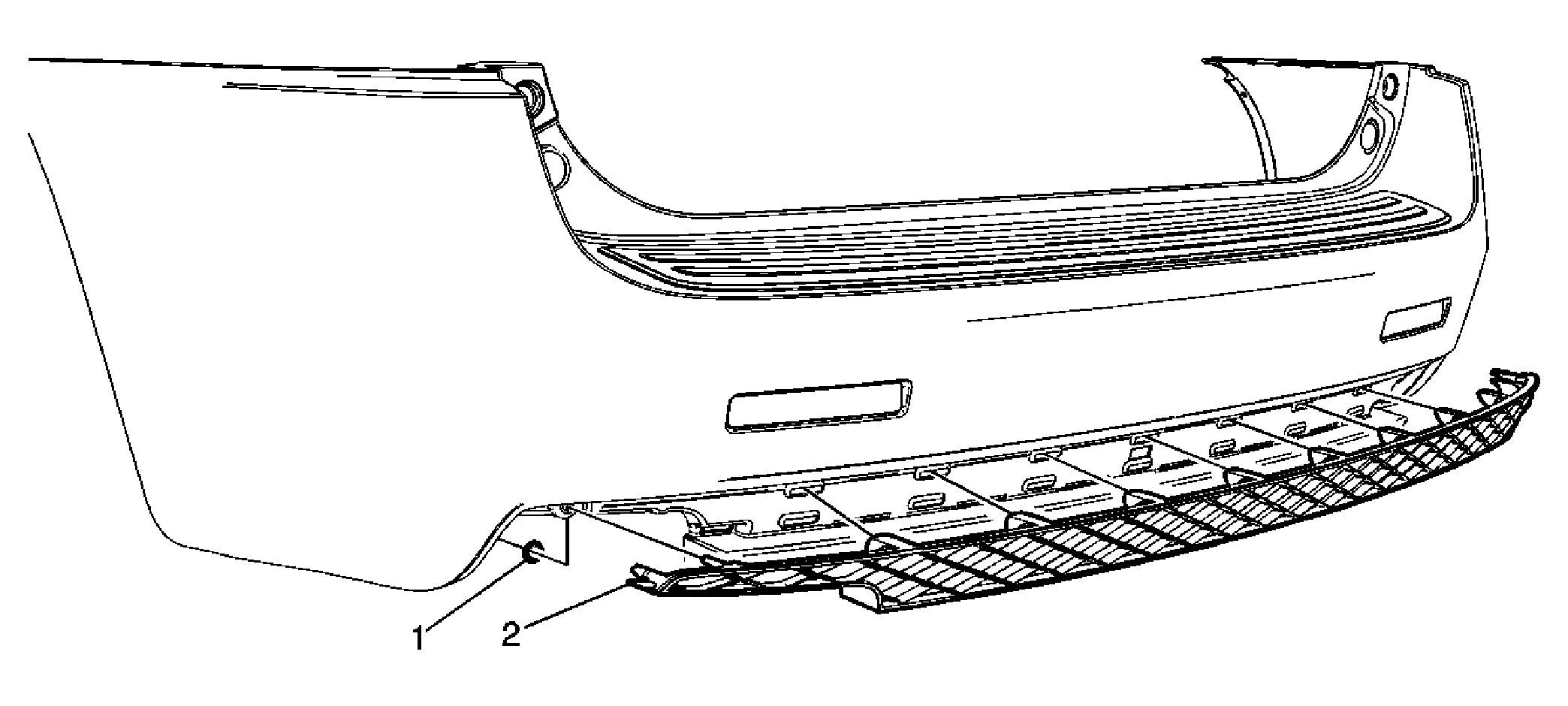

Fig 1: Identifying Rear Bumper Fascia Center Grille (Equinox SS)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Metric Stamped Nut (Qty:2) Tip: Hand tighten only, no torque required.
2	Rear Bumper Fascia Center Grille Procedure Remove the two metric nuts. Release the 16 rear grille tabs from the rear bumper fascia in order to remove the center grille assembly.

Callout

Component Name

Preliminary Procedure:
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .

Metric Stamped Nut (Qty:2)
Tip: Hand tighten only, no torque required.

Rear Bumper Fascia Center Grille

Procedure

Remove the two metric nuts.
Release the 16 rear grille tabs from the rear bumper fascia in order to remove the center grille assembly.
