Radiator Lower Grille Replacement (Torrent GXP)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

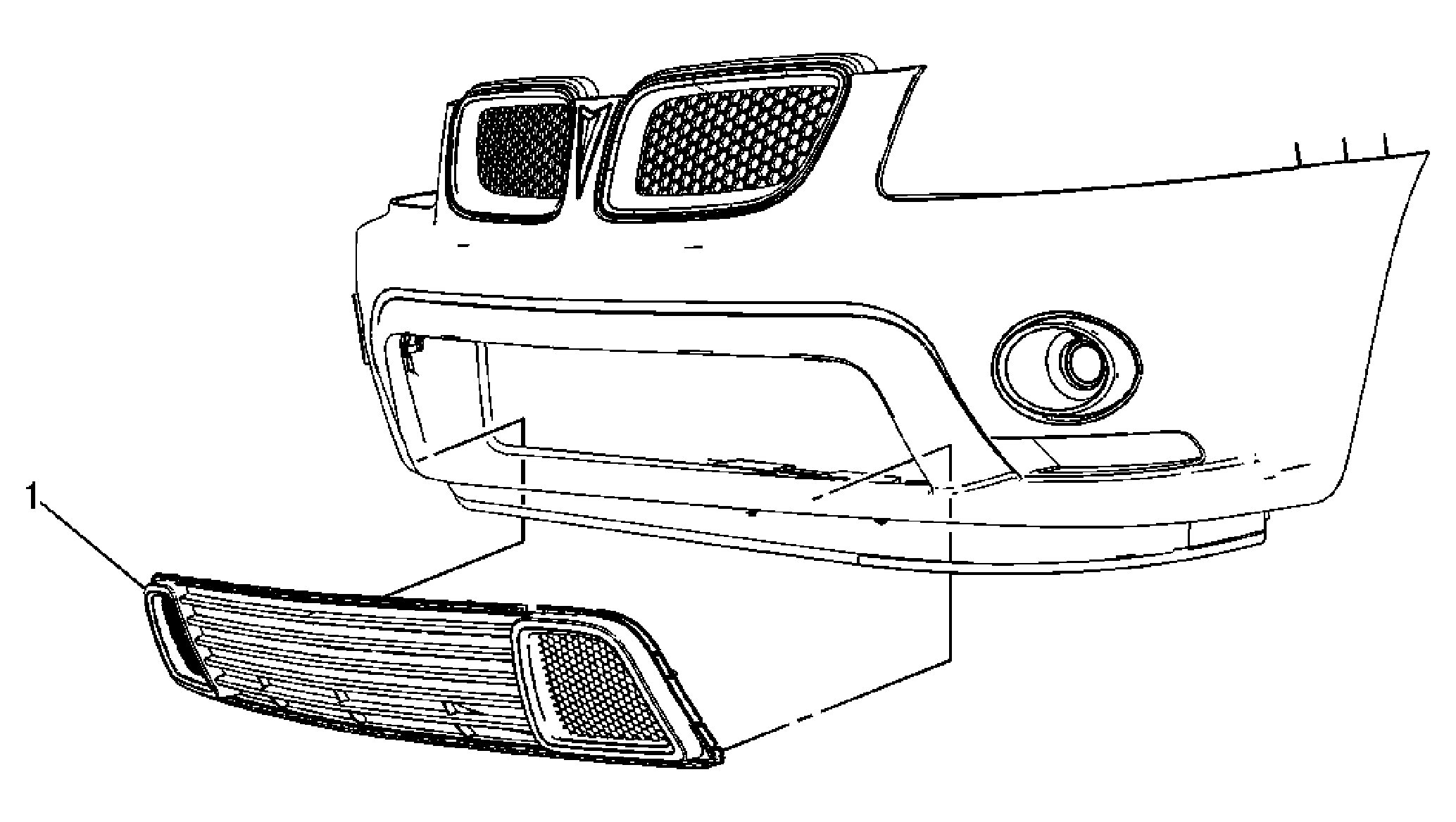

Fig 1: Identifying Radiator Lower Grille (Torrent GXP)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front bumper fascia energy absorber. Refer to Front Bumper Fascia Energy Absorber Replacement (Equinox) or Front Bumper Fascia Energy Absorber Replacement (SS) or Front Bumper Fascia Energy Absorber Replacement (Torrent) .
1	Radiator Lower Grille Procedure: Release all of the front bumper fascia tabs from the radiator lower grille and remove the grille from the inside of the front bumper fascia.
