Front Bumper Fascia Energy Absorber Replacement (Equinox)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

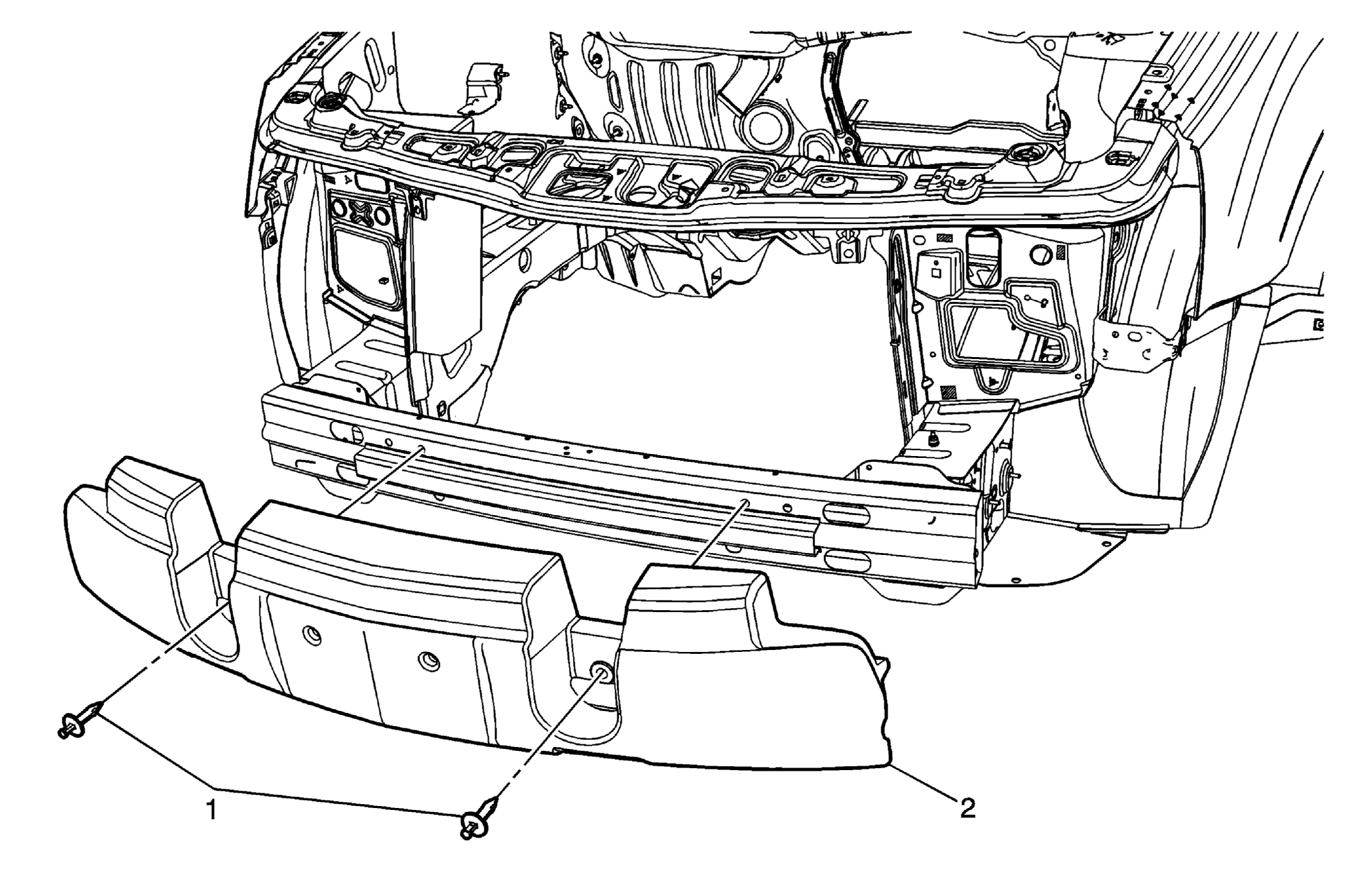

Fig 1: View Of Front Energy Absorber (Equinox)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (SS) or Front Bumper Fascia Replacement (Torrent) or Front Bumper Fascia Replacement (Equinox) .
1	Plastic Push Pin Retainers (Qty: 2)
2	Front Energy Absorber
