Liftgate Lower Molding Replacement (Torrent)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

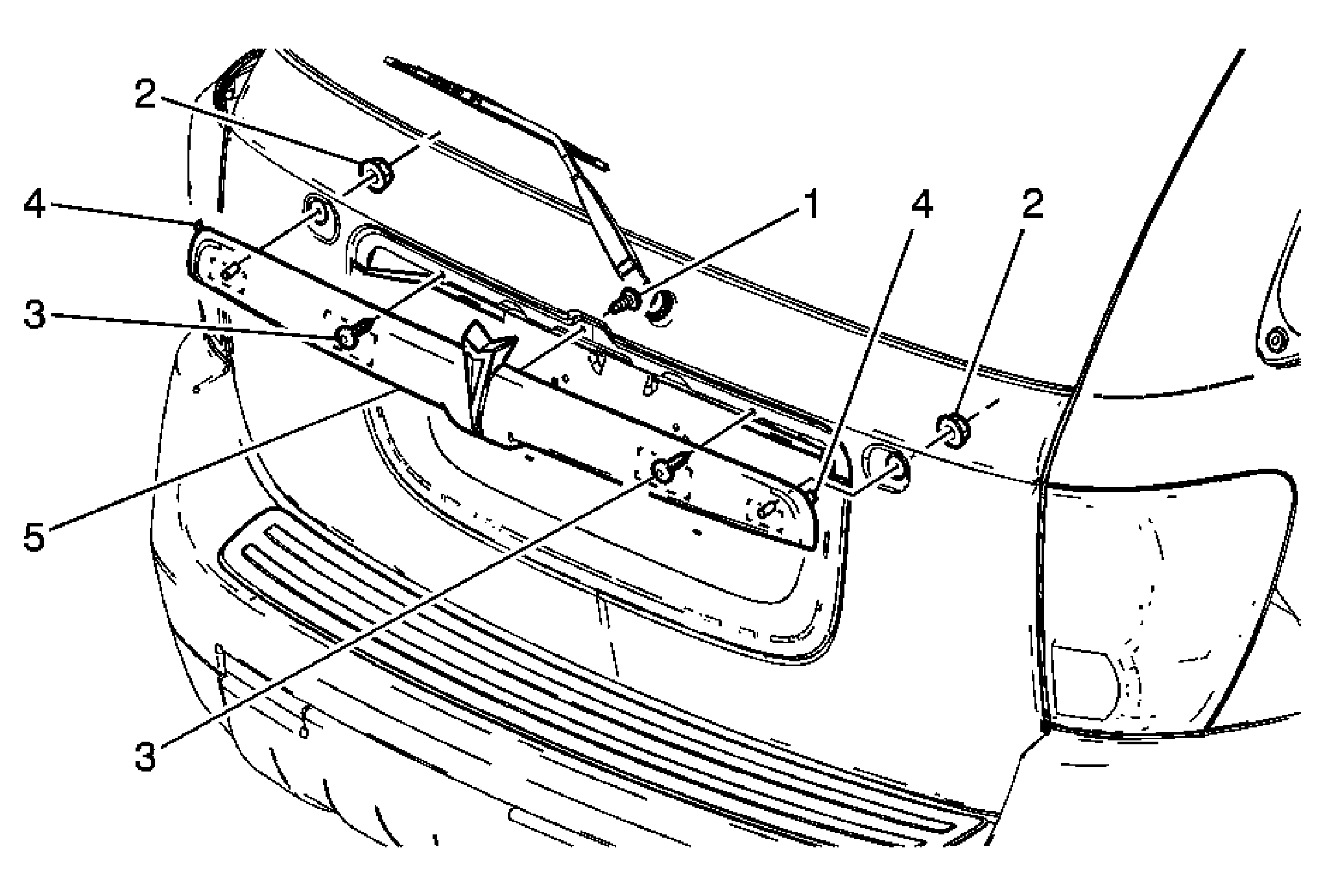

Fig 1: View Of Lift Gate Center Applique (Torrent)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Open the liftgate. Remove the liftgate interior trim panel. Refer to Liftgate Trim Panel Replacement . Remove the center applique screw from inside the liftgate panel. Remove the 2 outer applique nuts, also from inside the liftgate.
1	Liftgate Center Applique Assembly Screw CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Liftgate Center Applique Assembly Nut (Qty: 2) Tighten: 4 N.m (35 lb in)
3	Liftgate Center Applique Assembly Retainer (Qty: 2) Tip: Release the retainers from inside the applique panel.
4	Adhesive Tape Tip: Release the adhesive tape backing and wet out after the rear applique has been installed to the liftgate panel.
5	Liftgate Center Applique Assembly
