Liftgate Lower Molding Replacement (Equinox)
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

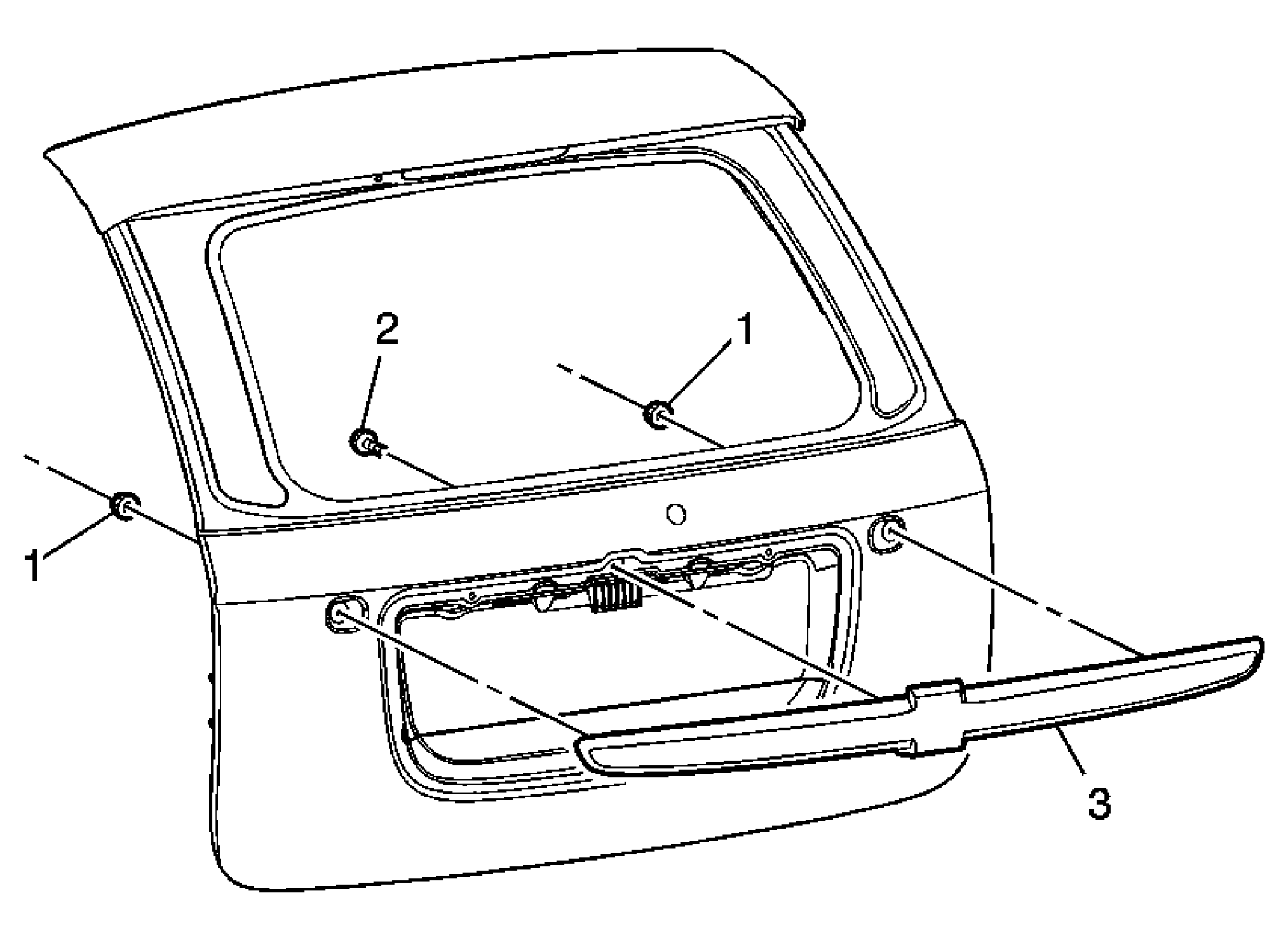

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the liftgate interior trim panel. Refer to Liftgate Trim Panel Replacement . |
|
| 1 | Liftgate Garnish Molding Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Liftgate Garnish Molding Bolt Tighten: 2 N.m (18 lb in) |
| 3 | Liftgate Garnish Molding Assembly Tip: Remove the molding from the liftgate by pulling away from the liftgate to disengage the remaining retainers. |
