Front Bumper Fascia Outer Insert Molding Replacement (Equinox SS)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

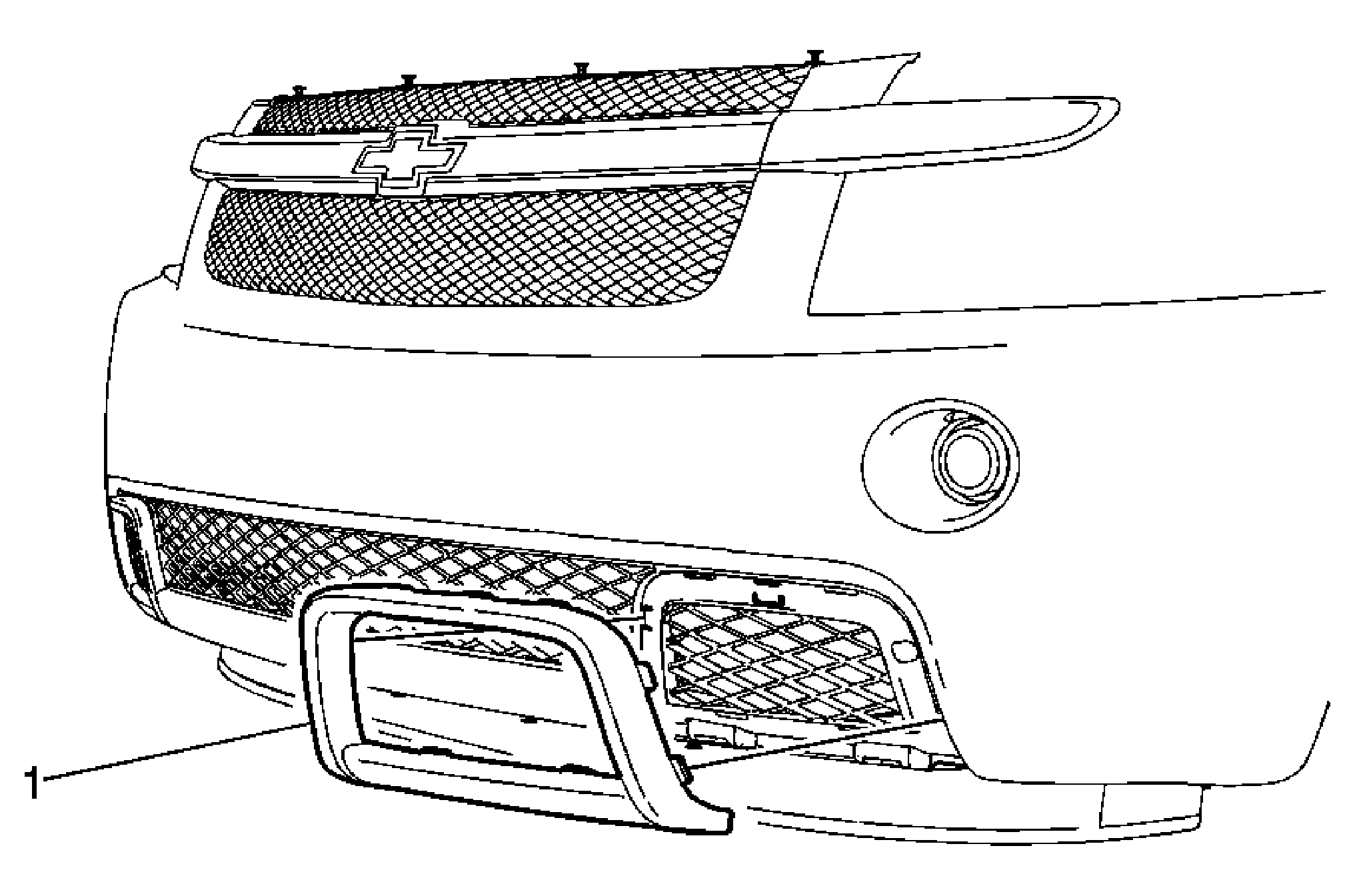

Fig 1: Identifying Front Bumper Fascia Outer Insert Molding (Equinox SS)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front bumper energy absorber. Refer to Front Bumper Fascia Energy Absorber Replacement (Equinox) or Front Bumper Fascia Energy Absorber Replacement (SS) or Front Bumper Fascia Energy Absorber Replacement (Torrent) .
1	Front Bumper Fascia Outer Insert Molding Tip: Release the outer insert molding locking tabs from the inside of the front bumper fascia and push the molding outward in order to remove.
