Transmission Mount Bracket Replacement - Rear (AWD)
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

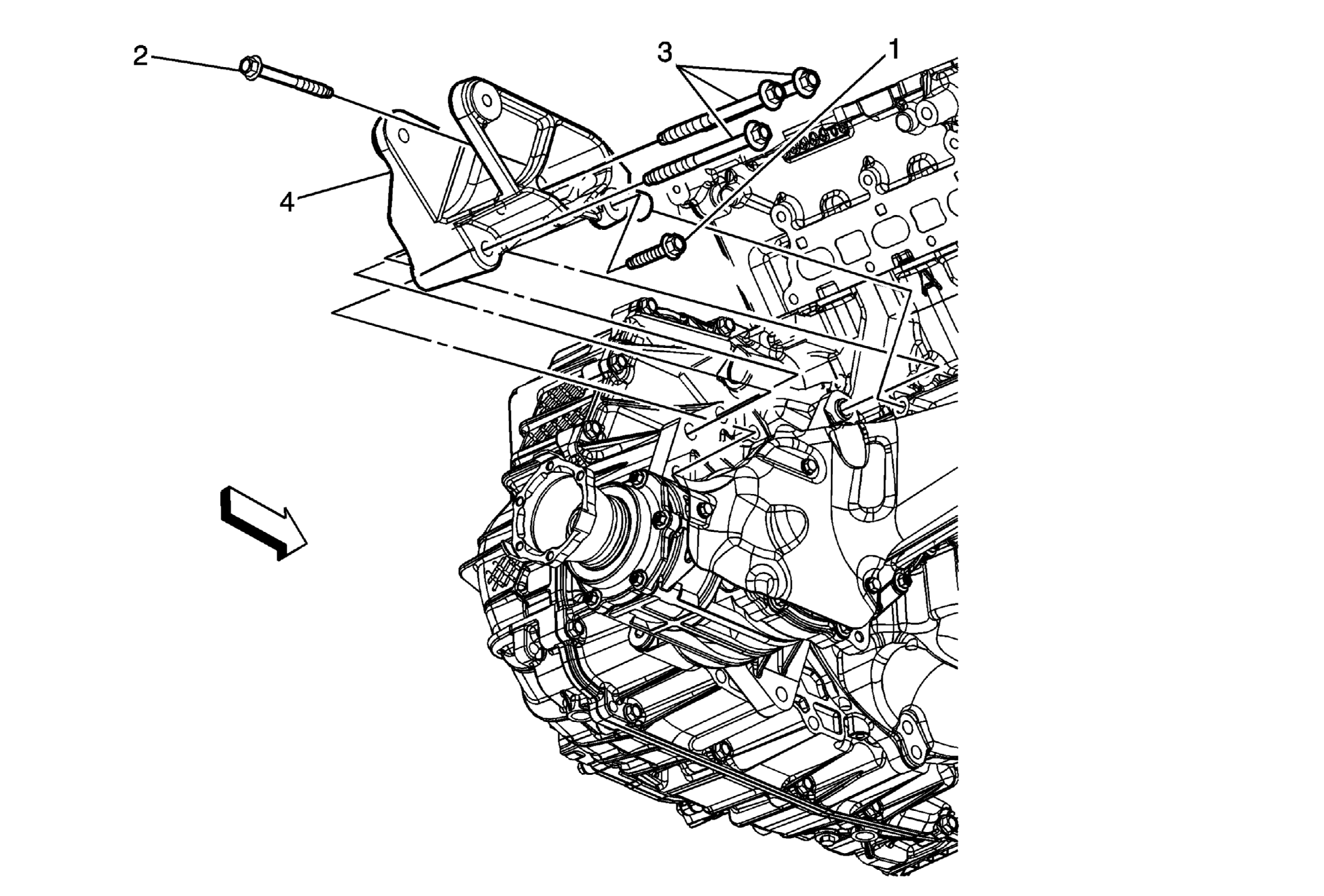

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the rear transmission mount. Refer to Transmission Rear Mount Replacement (FWD) or Transmission Rear Mount Replacement (AWD) . |
|
| 1 | Rear Transmission Mount Bracket Bolt
CAUTION:
Refer to Fastener Caution
.
Tighten: 50 N.m (37 lb ft) |
| 2 | Rear Transmission Mount Bracket Bolt Tighten: 50 N.m (37 lb ft) |
| 3 | Rear Transmission Mount Bracket Bolt (Qty: 3) Tighten: 110 N.m (81 lb ft) |
| 4 | Rear Transmission Mount Bracket |
