Transmission Rear Mount Replacement (FWD)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

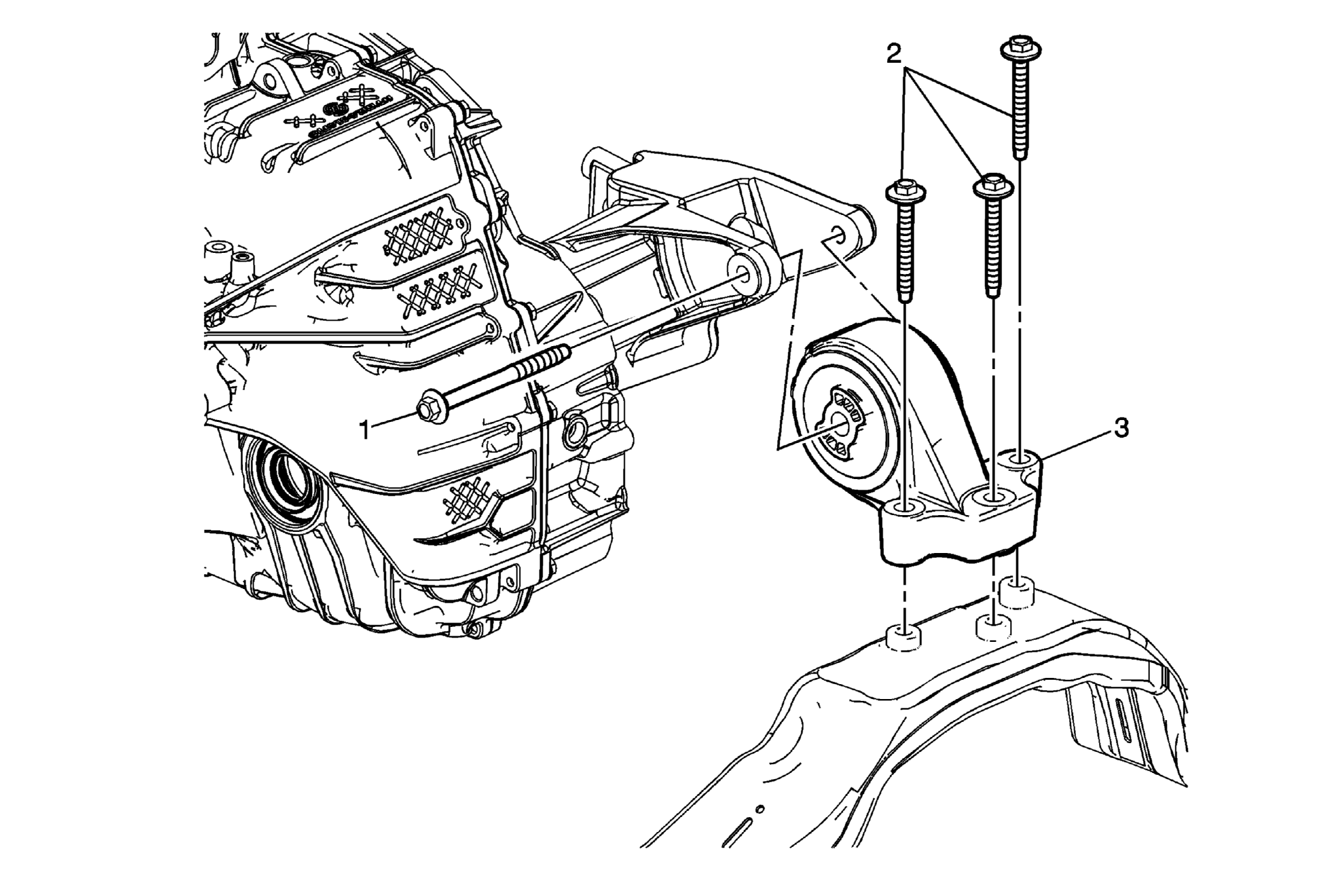

Fig 1: Identifying Transmission Rear Mount (FWD)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the right exhaust manifold. Refer to Exhaust Manifold Replacement - Right Side (LNJ) or Exhaust Manifold Replacement - Right Side (LY7) . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Support the transmission with a transmission jack.
1	Rear Transmission Mount Thru Bolt CAUTION: Refer to Fastener Caution . Tighten: 110 N.m (81 lb ft)
2	Rear Transmission Mount Bolt (Qty: 3) Tighten: 50 N.m (37 lb ft)
3	Rear Transmission Mount
